Name: ST72F561AR4TAE
Brand: STMicroelectronics
SKU: ST72F561AR4TAE
Availability: InStock

new-10%

ST72F561AR4TAE

Manufacturer part number:ST72F561AR4TAE

Manufacturer:STMicroelectronics

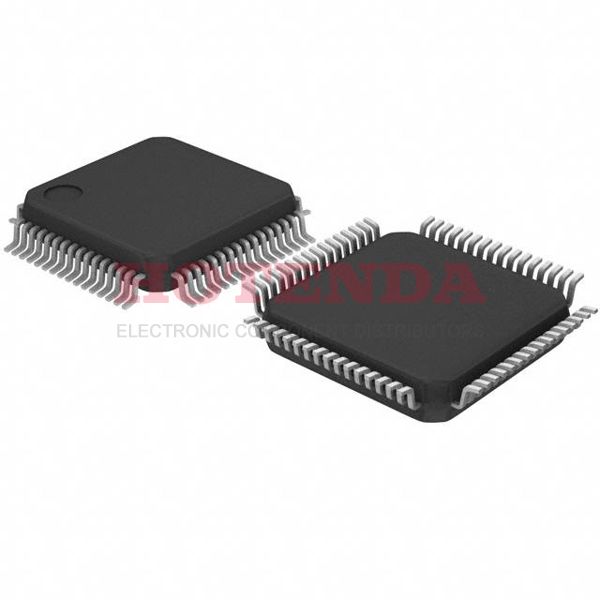

Description:16KB 16K x 8 FLASH 8-Bit Microcontroller ST7 Series ST72F56 64 Pin 8MHz 5V 64-LQFP

Case Package:SOT-23

Datasheet:ST72F561AR4TAE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-LQFP
Number of Pins	64
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	ST7
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Max Power Dissipation	500mW
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.5mm
Frequency	8MHz
Base Part Number	ST72F56
Pin Count	64
Operating Supply Voltage	5V
Power Supplies	5V
Interface	CAN, SCI, SPI
Memory Size	16kB
Oscillator Type	External
Number of I/O	48
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	3.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 16K x 8
Connectivity	CANbus, LINbusSCI, SPI
Supply Current-Max	15mA
Bit Size	8
Data Converter	A/D 16x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
ROM (words)	16384
On Chip Program ROM Width	8
Length	10mm
Height Seated (Max)	1.6mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ST72F561AR4TAE Product Details

ST72F561AR4TAE Overview
