Name: ST72F324BJ4B5
Brand: STMicroelectronics
SKU: ST72F324BJ4B5
Availability: InStock

new-10%

ST72F324BJ4B5

Manufacturer part number:ST72F324BJ4B5

Manufacturer:STMicroelectronics

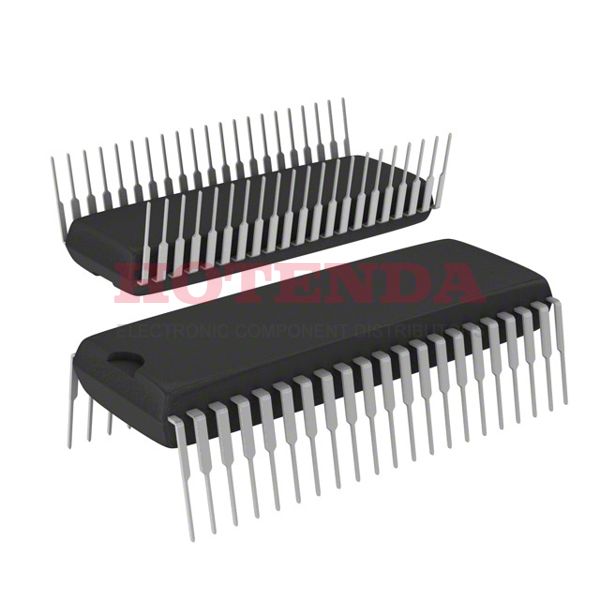

Description:16KB 16K x 8 FLASH 8-Bit Microcontroller ST7 Series ST72F32 42 Pin 8MHz 5V 42-SDIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:ST72F324BJ4B5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	42-SDIP (0.600, 15.24mm)
Number of Pins	42
Operating Temperature	-10°C~85°C TA
Packaging	Tube
Series	ST7
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	42
Terminal Finish	MATTE TIN
Max Power Dissipation	500mW
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	225
Supply Voltage	5V
Terminal Pitch	1.778mm
Frequency	8MHz
Base Part Number	ST72F32
Pin Count	42
Operating Supply Voltage	5V
Power Supplies	5V
Interface	SCI, SPI
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	32
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	3.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Peripherals	LVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 16K x 8
Connectivity	SCI, SPI
Supply Current-Max	5.5mA
Bit Size	8
Data Converter	A/D 12x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	2
ROM (words)	16384
On Chip Program ROM Width	8
Length	36.83mm
Height Seated (Max)	5.08mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ST72F324BJ4B5 Product Details

ST72F324BJ4B5 Overview

This Microcontroller comes in a 42-SDIP (0.600, 15.24mm) package. This Microcontroller has 32 I/Os. The Mounting Type of the Microcontroller is Through Hole. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -10°C~85°C TA Operating Temperature. Microcontroller runs in ST7 Series. The size of the program memory of Microcontroller is 16KB 16K x 8. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 42 terminals. Microcontroller comes with 8 bit size. The component always operates in 5V supply voltage. MCU chip has NO DMA channels. The part owns 16kB memory size. You can find alternatives through the base part number ST72F32. MCU's frequency is 8MHz. The device works in YES PWM channels. The pin number of the component remains 42. It has 2 timers/counters. It counts 42 pins.
