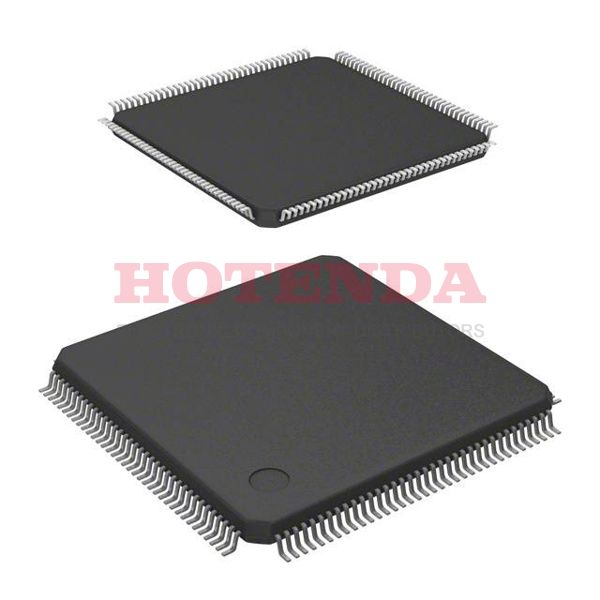

ST10F269Z2Q6 Description
The ST10F269Z1-ST10F269Z2 are derivatives of the STMicroelectronics ST10 family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance (up to 20 million instructions per second) with high peripheral functionality and enhanced I/Ocapabilities. It also provides on-chip high-speed single voltage Flash memory, on-chip highspeed RAM, and clock generation via PLL.
The ST10F269Z1-ST10F269Z2 are processed in 0.35 mm CMOS technology. The MCU core and the logic is supplied with a 5 V to 2.7 V on chip voltage regulator. The part is supplied with a single 5 V supply and I/Os work at 5 V.
ST10F269Z2Q6 Features
? High performance 32 or 40 MHZ CPU with
DSP function
– 16-bit CPU With 4-stage pipeline
– 50 ns (or 62.5 ns) instruction cycle time at
40 MHz (or 32 MHz) max CPU Clock
– Multiply/accumulate unit (Mac) 16 X 16-bit
multiplication, 40-bit accumulator
– Repeat unit
– Enhanced boolean bit manipulation
facilities
– Additional instructions to support HLL and
operating systems
– Single-cycle context switching support
? Memory organization
– 128 - or 256-Kbyte on-chip Flash memory
single voltage with erase/program
controller
– Up to 1K erasing/programming cycles
– Up to 16-Mbyte linear address space for
code and data (5 Mbytes with CAN)
– 2-Kbyte on-chip internal RAM (IRAM)
– 10- Kbyte on-chip extension RAM (XRAM)
? Fast and flexible bus
– Programmable external bus characteristics
for different address ranges
– 8-bit or 16-bit external data bus
– Multiplexed or demultiplexed external
address / data buses
– Five programmable chip-select signals
– Hold-acknowledge bus arbitration support
? Interrupt
– 8-channel peripheral event controller for
single cycle interrupt driven data transfer
– 16-priority-level interrupt system with 56
sources, sampling rate down to 25 ns at
40 MHz (31.25 ns at 32 MHz)
ST10F269Z2Q6 Applications
user interfaces
hand-held equipment
A/V receivers and digital TV
PC peripherals
gaming and GPS platforms
