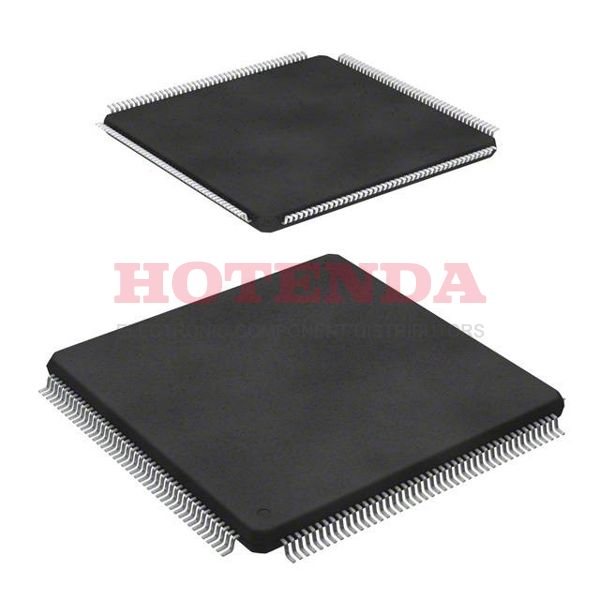

Name: SPC564A80L7COBR
Brand: STMicroelectronics
SKU: SPC564A80L7COBR
Availability: InStock

new-10%

SPC564A80L7COBR

Manufacturer part number:SPC564A80L7COBR

Manufacturer:STMicroelectronics

Description:4MB 4M x 8 FLASH e200z4 32-Bit Microcontroller Automotive, AEC-Q100, SPC56 Series SPC564A 1.2V 176-LQFP

Case Package:SOT-23

Datasheet:SPC564A80L7COBR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	26 Weeks
Mounting Type	Surface Mount
Package / Case	176-LQFP
Surface Mount	YES
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, SPC56
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	176
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	SPC564A
Pin Count	176
JESD-30 Code	S-PQFP-G176
Supply Voltage-Max (Vsup)	1.32V
Supply Voltage-Min (Vsup)	1.14V
Oscillator Type	Internal
Number of I/O	118
Speed	120MHz
RAM Size	192K x 8
Voltage - Supply (Vcc/Vdd)	1.14V~1.32V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	e200z4
Peripherals	DMA, POR, PWM, WDT
Clock Frequency	80MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	4MB 4M x 8
Connectivity	CANbus, EBI/EMI, LINbus, SCI, SPI
Bit Size	32
Data Converter	A/D 34x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Address Bus Width	32
ROM (words)	1048576
On Chip Program ROM Width	32
External Data Bus Width	32
Length	24mm
Height Seated (Max)	1.6mm
Width	24mm
RoHS Status	ROHS3 Compliant

SPC564A80L7COBR Product Details

SPC564A80L7COBR Overview

This Microcontroller comes in a 176-LQFP package. This Microcontroller has 118 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, SPC56 Series. The size of the program memory of Microcontroller is 4MB 4M x 8. MCU is powered by e200z4 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 176 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.2V supply voltage. MCU chip has YES DMA channels. You can find alternatives through the base part number SPC564A. The device works in YES PWM channels. It counts 176 pins. It is at 80MHz clock frequency.
