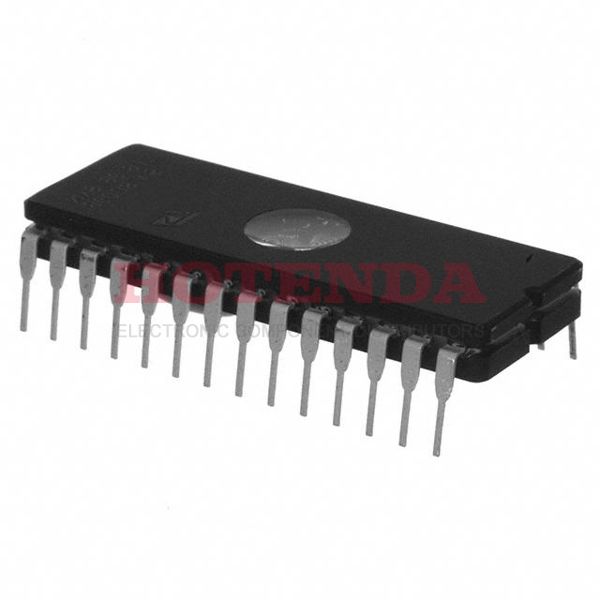

M27C512-90F1 Overview
As far as memory types are concerned, Non-Volatile is considered to be its memory type. In addition, memory ics is available in a Tube case as well. There is a 28-CDIP (0.600, 15.24mm) Window case embedded in it. This chip has an 512Kb 64K x 8 size of memory on it, so a lot of data can be stored on it. This device utilizes a EPROM format memory which is of mainstream design. 0°C~70°C TA is an extended operating temperature range, making this device ideal for demanding applications. It is capable of handling a voltage supply of 4.5V~5.5V. There is a recommendation that Through Hole mounting type should be used for this product. The chip is terminated with 28 terminations. As many as 1 functions are supported for comprehensive working. An 5V supply is required for this ic memory chip to operate properly. To select similar parts, many people use the device's base part number M27C512. The memory device has an 28-pin package, which encloses it in a small package. The memory device has 28 pins, which means that it has 28 memory locations, which indicates it is an 28-bit device. There is a note indicating that this memory chip operates at an 5V volt supply voltage. As a result of the Through Hole mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. The nominal supply current of this memory component is 50mA. There is only a single power supply required for this memory chip. In addition to this device, there are COMMON-bit memory mapped I/O port addresses on this device.
M27C512-90F1 Features
Package / Case: 28-CDIP (0.600, 15.24mm) Window
28 Pins
Operating Supply Voltage:5V
I/O Type: COMMON
M27C512-90F1 Applications
There are a lot of STMicroelectronics M27C512-90F1 Memory applications.
- servers
- Camcorders
- DVD disk buffer
- data buffer
- networking
- printers
- cell phones
- workstations,
- mainframes
- hard disk drive (HDD)
