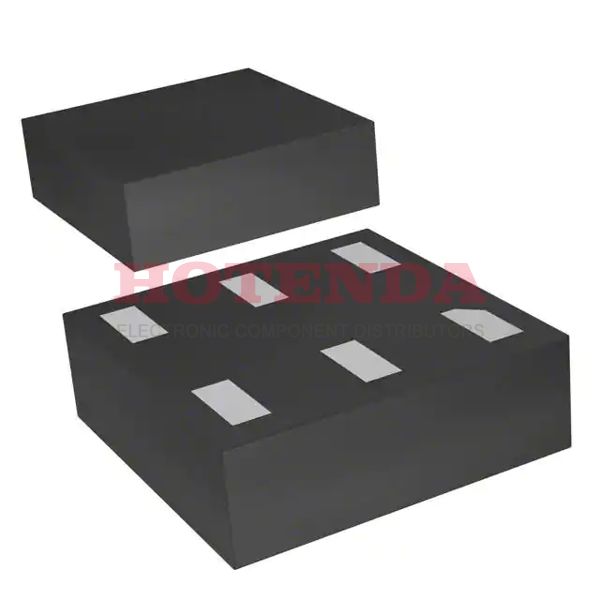

LDK220PU50R Overview
In the case of Cut Tape (CT) cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a 6-XFDFN case. The PMIC chip has 6 terminations. Fixed is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 6 axis. Here's the basic part number for this IC regulator: LDK220. Upon reaching its maximal output current, 200mA, it is able to satisfy the operation requirements. It operates in the 1μA Quiescent Current state. This regulator IC is operated by a 60μA-volt supply current. Tolerance is 2%, which is quite low for this IC voltage regulator.
LDK220PU50R Features
350mV dropout voltage
2% tolerance
LDK220PU50R Applications
There are a lot of STMicroelectronics
LDK220PU50R Linear Voltage Regulators applications.
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
- Aging system
