L78L12ACZ Overview

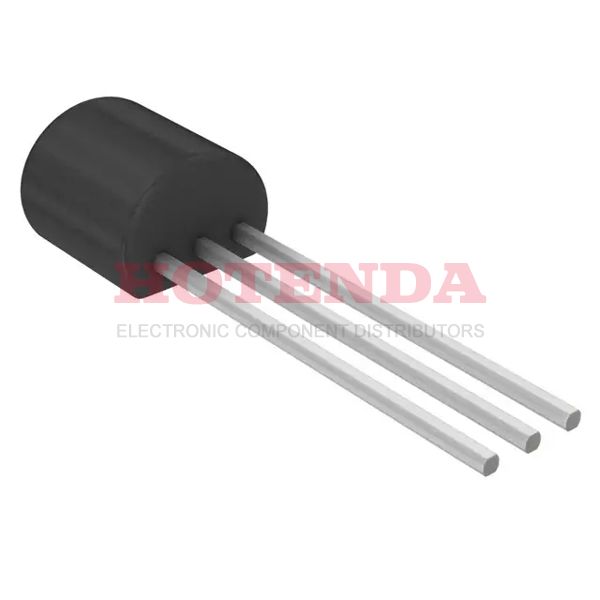

Deliveries are in Bag cases. The package is in a TO-226-3, TO-92-3 (TO-226AA) case. Basically, the voltage regulator chip is made up of 3 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Through Hole operating temperatures. The Voltage Regulated IC operates at a temperature of 0°C~125°C degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 3. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 3-shaped. As an FYI, this IC voltage regulator has the basic part number L78L12. The maximal output current reaches 100mA to meet the operating requirements. It operates in the 6.5mA Quiescent Current state. As far as tolerances are concerned, this IC regulator has 10% tolerance.
L78L12ACZ Features
1.7V dropout voltage
10% tolerance
L78L12ACZ Applications
There are a lot of STMicroelectronics
L78L12ACZ Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
