L78L05ACD Overview

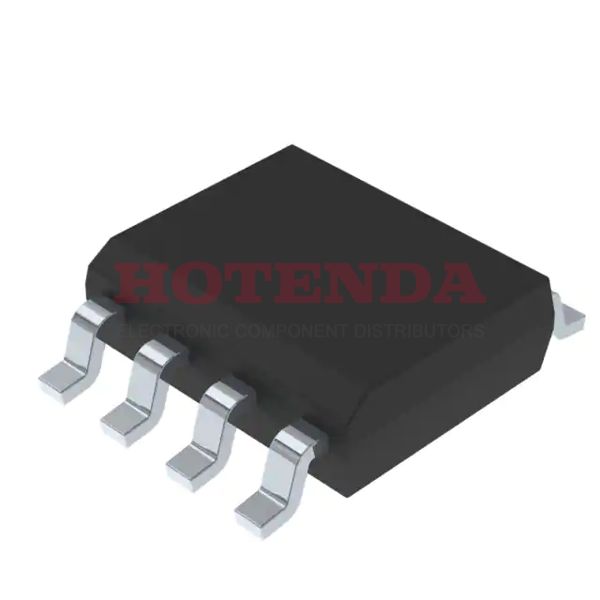

A Tube case is used to deliver the Voltage Regulated IC. A 8-SOIC (0.154, 3.90mm Width) case is used for packaging. As you can see, the IC chip has 8 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. 0°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 8 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 8 pins are on the chip. For your information, this regulator's basic part number is L78L05. To meet operation requirements, the voltage regulator IC has a maximum output current of 100mA. It operates in the 6mA Quiescent Current state.

L78L05ACD Features

1.7V dropout voltage

L78L05ACD Applications

There are a lot of STMicroelectronics
L78L05ACD Linear Voltage Regulators applications.

• Communication device
• Personal communication device
• Portable telephone
• Electronic notebook
• Camera
• Video equipment
• CPU power supply
• Switching regulator
• Multiple-power supply system
• Digital audio player
