L7812ACV-DG Overview

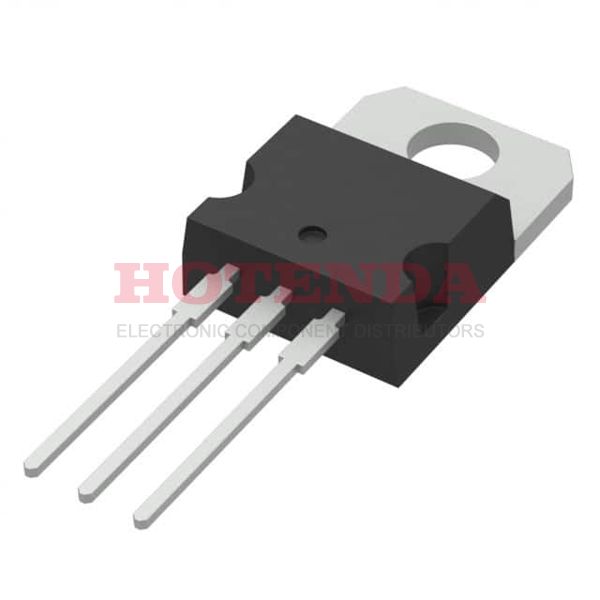

Tube cases are used for delivery. The Liner regulator IC is packaged in TO-220-3 case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Through Hole operating temperature range by the Voltage Regulator IC. Default settings are set to 0°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There are a total of 3 pins on this board. There is a dropout voltage of 10 volts on this IC regulator. For your information, the basic part number for this regulator IC is L7812. In order to meet the operation requirements, its maximal output current reaches 1.5A. It operates in the 6mA Quiescent Current state.
L7812ACV-DG Features
2V dropout voltage
L7812ACV-DG Applications
There are a lot of STMicroelectronics
L7812ACV-DG Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
