L7806CV-DG Overview

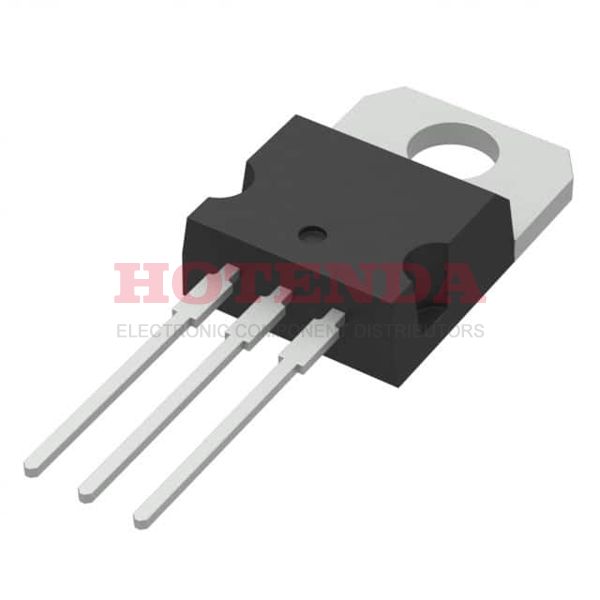

A Tube case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-220-3 case. On the regulater IC chip, there are a total of 3 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Through Hole can be adjusted within a specified range. There is a temperature range of 0°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. A total of 3 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 3 pins on the chip. As an FYI, this IC voltage regulator has the basic part number L7806. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 1.5A. It operates in the 8mA Quiescent Current state.
L7806CV-DG Features
2V dropout voltage
L7806CV-DG Applications
There are a lot of STMicroelectronics
L7806CV-DG Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
