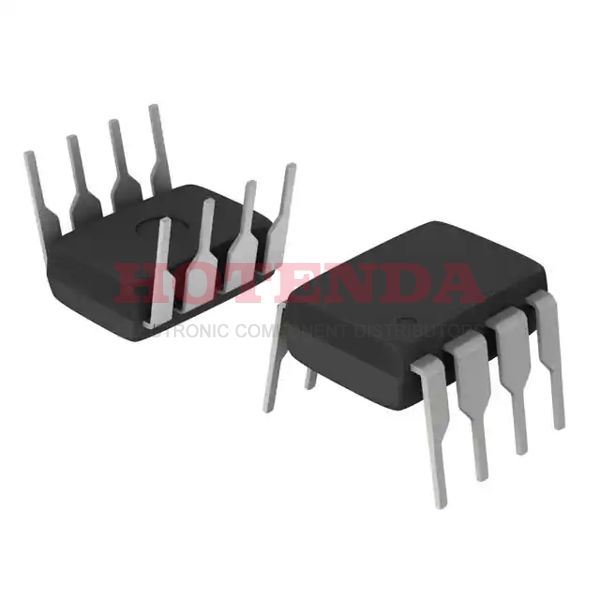

L6565N Overview
A ac to dc converter of the package 8-DIP (0.300, 7.62mm) contains the ac to dc converter.The AC/DC power converter type is Tube .It is mounted in the way of Through Hole .The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.An analog IC of type SWITCHING CONTROLLER is employed in this AC DC converter.It can be used within the range of 10.3V~18V supply voltage (Vcc/Vdd).In total, there are 8 terminations.On this ac/dc converter, there are 8 pins.The pins of the ac-dc converter count up to 8 .It is suitable for mounting by Through Hole .Similar acdc converters can be found using the L6565 family.A total of 1 outputs need to be run.AC to DC converter is contained in Switching Regulator or Controllers .There is 400mA output current set.Here is the standard for REACH SVHC : No SVHC .Approximately 5mA amps of supply current can be handled by the power AC DC.The AC to DC power supply consumes quiescent current at 3.5mA .
L6565N Features
Packaged with 8-DIP (0.300, 7.62mm)
With 8 pins
Output Current at 400mA
L6565N Applications
There are a lot of STMicroelectronics L6565N AC DC Converters applications.
- Switching AC-DC Charger
- AC/DC Adaptors/Chargers for Cordless Phone
- Automotive Telematics
- Set -Top Box (STB) Power Supply
- Adapter for ADSL
- Lighting controls
- Power adapters for monitors
- LED Driver
- Digital cameras
- Battery chargers for mobile devices with touchpad display
