L4947L Overview

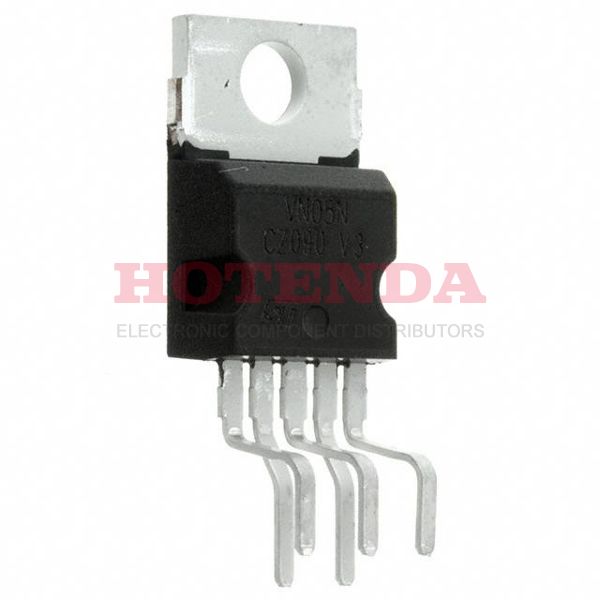

A Tube case is used to deliver the Voltage Regulated IC. A Pentawatt-5 (Vertical, Bent and Staggered Leads) case is used for packaging. As you can see, the IC chip has 5 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Through Hole varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 500mA. There are 5 pins in total in this voltage regulator IC. The dropout voltage of the regulator IC is 10 volts. 5 pins are on the chip. For your information, this regulator's basic part number is L4947.
L4947L Features
400mV dropout voltage
L4947L Applications
There are a lot of STMicroelectronics
L4947L Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
