L4947 Overview

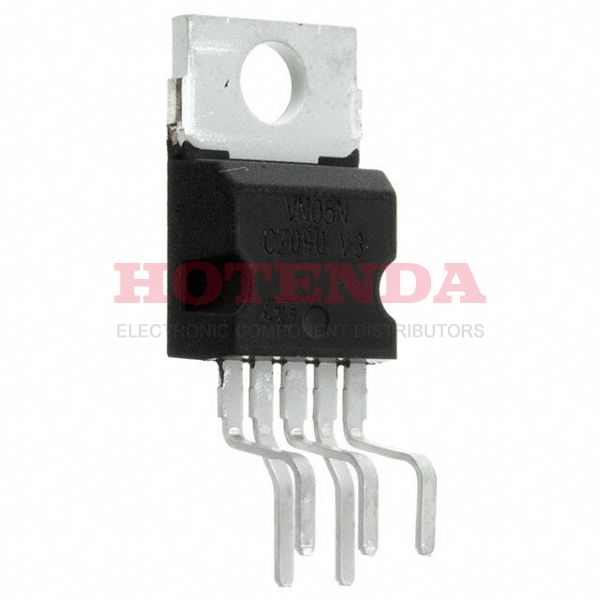

In a Tube case, the IC voltage regulator is delivered. A Pentawatt-5 (Vertical, Bent and Staggered Leads) case contains the Liner IC. In total, there are 5 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Through Hole varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 500mA. There are 5 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 5-pin is present on the chip. It is L4947 for this voltage regulator IC, just for your information. It operates in the 10mA Quiescent Current state.
L4947 Features
400mV dropout voltage
L4947 Applications
There are a lot of STMicroelectronics
L4947 Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
