Name: L4909
Brand: STMicroelectronics
SKU: L4909
Availability: InStock

new-10%

L4909

Manufacturer part number:L4909

Manufacturer:STMicroelectronics

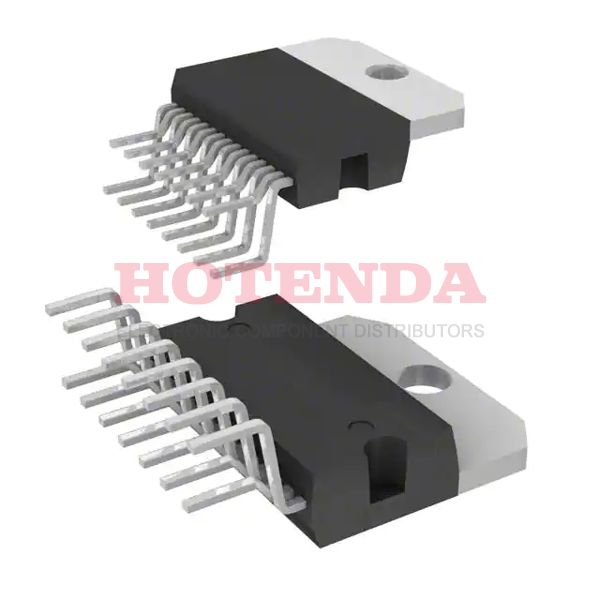

Description:Enable, Trigger Adjustable 1.27mm L4909 PMIC 15 Multiwatt-15 (Vertical, Bent and Staggered Leads)

Case Package:SOT-23

Datasheet:L4909 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Number of Pins	15
Operating Temperature	0°C~70°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	15
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Terminal Position	ZIG-ZAG
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Terminal Pitch	1.27mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	L4909
Pin Count	15
Current - Supply (Max)	29mA
Number of Outputs	3
Qualification Status	Not Qualified
Output Voltage	12V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1.2A 1.2A 1.2A
Control Features	Enable, Trigger
Voltage - Output (Min/Fixed)	5V
Number of Regulators	3
Min Input Voltage	40V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	11mA
Voltage Dropout (Max)	2.2V @ 500mA 2.2V @ 500mA 2.2V @ 500mA
PSRR	60dB (120Hz ~ 1kHz)
Dropout Voltage1-Nom	2.2V
Voltage - Output (Max)	12V
Min Current Limit	1.2A
Load Regulation-Max(%)	2%
Line Regulation-Max (%/V)	0.09
RoHS Status	ROHS3 Compliant

L4909 Product Details

L4909 Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a Multiwatt-15 (Vertical, Bent and Staggered Leads) package. There are 15 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 3 regulators. The Linear Voltage Regulator's mounting type is Through Hole. The IC Regulator is set to operate at 0°C~70°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1.2A 1.2A 1.2A. IC voltage regulator has a sum of 15 pins. To ensure prompt, sufficient performance, this part features 3 outputs in total. The component's pin number remains 15. FYI, the basic part number for this IC regulator is L4909.
