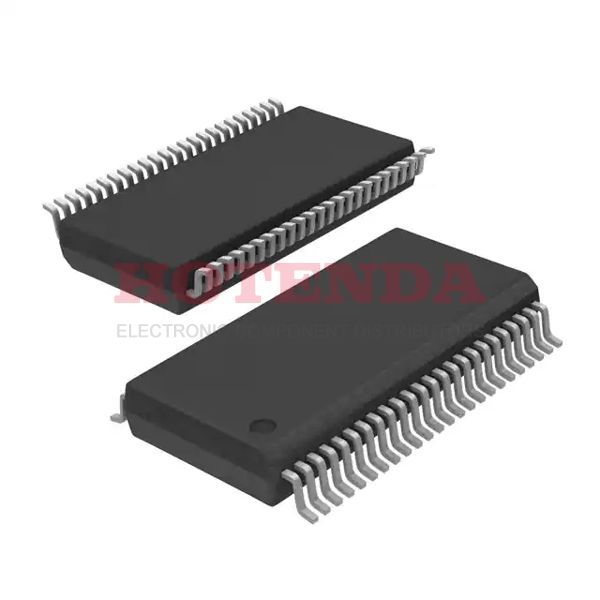

Name: B5S16862TTR
Brand: STMicroelectronics
SKU: B5S16862TTR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240, 6.10mm Width)
Number of Pins	48
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	48
Type	Bus Switch
Resistance	14Ohm
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Voltage - Supply	4V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	20
Supply Voltage	4.5V
Terminal Pitch	0.5mm
Base Part Number	B5S168
Pin Count	48
Circuit	5 x 1:1
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Supply Voltage-Min (Vsup)	4V
Number of Ports	2
Number of Bits	1
Propagation Delay	250 ps
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-128mA
Low Level Output Current	128mA
Voltage Supply Source	Single Supply
Independent Circuits	4
Height Seated (Max)	1.2mm
Length	12.5mm
Width	6.1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

B5S16862TTR Product Details

B5S16862TTR Overview

Digital switch is provided in the 48-TFSOP (0.240, 6.10mm Width) for the purpose of saving board space.As a result, it is packaged in a way that is referred to as Tape & Reel (TR).In terms of mounting, digital switch ic uses the method of Surface Mount.The multiplexers uses an analog IC Bus Switch as the analog part of the circuit.In the case of -55°C~125°C, turn signal switch will not be affected by external factors.With a supply voltage of 4V~5.5V, designers have greater flexibility of digital controlled switch.There are 48 terminations included in its basic configuration.There is a base part number of B5S168 which can also be used in order to locate the logic switch that are related to this item.The multiplexer's system is powered by 4.5V volts.This turn signal switch has a total of 48 component pins.Conductors terminate at GULL WING in this design.In this case, the supply type is Single.Currently, it is configured with a 48 pin configuration.The multiplexer ic is mounted in the direction of Surface Mount.Signal multiplexer provides 1 bits.The minimal supply voltage (Vsup) should be kept at 4V to avoid some unnecessary failures.It is advisable to keep the maximum supply voltage (Vsup) at 5.5V in order to prevent some unnecessary failures.A power supply is provided for mux switch's normal operation of 5V.In electronic terms, the digital switch ic is classified as part number Bus Driver/Transceivers.The resistance of the signal switching is 2.With a resistance of 14Ohm, it operates.
