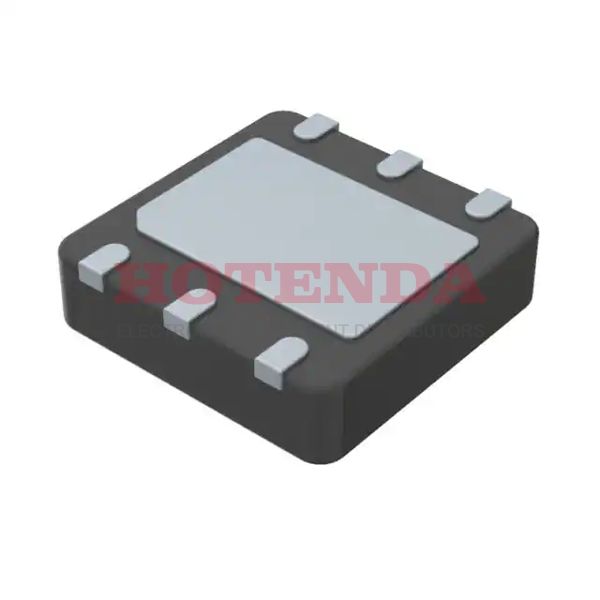

74AUP1G04DTR Overview
The part can be shipped overseas conveniently because it is packaged in 6-UFDFN. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of Inverter. The part must have a voltage of 1.2V~3.6V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 10mA 10mA. This is part of the 74AUP series. In total, there are 6 terminations. Use 74AUP1G04 to search for device variants. Many applications use this logic device with Surface Mount mounting. The functions of 6 pins can be found in the datasheets. When the part is quiescent, 100nA current flows through it. A total of 1 circuits make up this device. It has a load capacitance of 50pF. There is an industry TAPE AND REEL method included. It is specified that the operating supply voltage for the chip will be 3.3V volts.
74AUP1G04DTR Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 100nA
74AUP1G04DTR Applications
There are a lot of STMicroelectronics
74AUP1G04DTR Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
