BR1111C-TR datasheet pdf and LED Indication - Discrete product details from Stanley Electric Co stock available on our website
SOT-23
BR1111C-TR Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
11 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Pins
2
Shape
Rectangular
Packaging
Tape & Reel (TR)
Series
1111C
Published
2010
Size / Dimension
1.60mm Lx0.80mm W
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Color
Red
Packing Method
TAPE AND REEL
Number of Functions
1
Depth
800μm
Case Code (Metric)
1608
Case Code (Imperial)
0603
Number of Elements
1
Configuration
Standard
Power Dissipation
57.5mW
Voltage - Forward (Vf) (Typ)
1.7V
Viewing Angle
136°, 141°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
25mA
Current - Test
20mA
Lens Style
Rectangle with Flat Top
Lens Size
1.10mmx0.80mm
Luminous Intensity
11.7 mcd
Lens Transparency
Diffused
Wavelength - Peak
660nm
Lens Color
White
Reverse Voltage
4V
Wavelength - Dominant
647nm
Height
700μm
Radiation Hardening
No
RoHS Status
RoHS Compliant
Lead Free
Lead Free
In-Stock:19546 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
BR1111C-TR Product Details
Description:

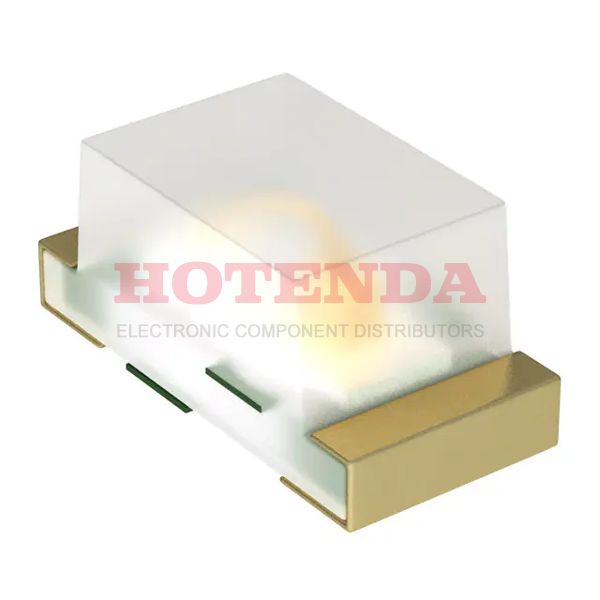

The Stanley Electric LED Indication - Discrete BR1111C-TR is a surface mount LED with a 0603 package size. It has a red color and a viewing angle of 136/141°. The LED has a luminous intensity of 11.7 mcd and a white diffused lens.
Features:
- 0603 package size - Red color - Viewing angle of 136/141° - Luminous intensity of 11.7 mcd - White diffused lens
Applications:
The Stanley Electric LED Indication - Discrete BR1111C-TR is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for backlighting, status indication, and decorative lighting.
