Name: RMCF0805ZT0R00
Brand: Stackpole Electronics Inc
SKU: RMCF0805ZT0R00
Price: 0.10000 USD
Availability: InStock

new-10%

RMCF0805ZT0R00

Manufacturer part number:RMCF0805ZT0R00

Manufacturer:Stackpole Electronics Inc

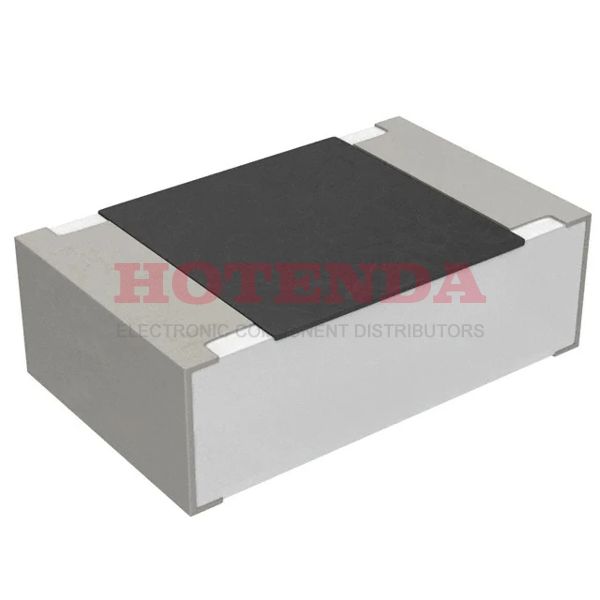

Description:RES 0 OHM JUMPER 1/8W 0805

Case Package:SOT-23

Datasheet:RMCF0805ZT0R00 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Plating	Tin
Mount	Surface Mount
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Published	2010
Series	RMCF
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	Jumper
JESD-609 Code	e3
Feature	Automotive AEC-Q200
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Resistance	0Ohm
Composition	Thick Film
Power (Watts)	0.125W 1/8W
Power Rating	125mW
Packing Method	TR, PAPER, 7 INCH
Max Power Dissipation	125mW
Depth	1.25mm
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Military Standard	Not
Case Code (Metric)	2012
Case Code (Imperial)	0805
Height	660.4μm
Height Seated (Max)	0.026 0.65mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

RMCF0805ZT0R00 Product Details

Stackpole Electronics' Chip Resistor - Surface Mount RMCF0805ZT0R00 is a high-performance, reliable resistor designed for use in a variety of applications. This 0 ohm jumper is rated for 1/8 watt and is constructed with a 0805 size package. It features a low-profile design, making it ideal for use in tight spaces. The resistor is constructed with a flame-retardant epoxy coating, providing superior protection against environmental conditions. It is also RoHS compliant, ensuring it meets the highest standards of safety and quality. With its high-performance and reliable design, the Chip Resistor - Surface Mount RMCF0805ZT0R00 is an ideal choice for a variety of applications.
