Name: RMCF0805JT3M60
Brand: Stackpole Electronics Inc
SKU: RMCF0805JT3M60
Price: 0.10000 USD
Availability: InStock

new-10%

RMCF0805JT3M60

Manufacturer part number:RMCF0805JT3M60

Manufacturer:Stackpole Electronics Inc

Description:FIXED RESISTOR RMCF Series, Thick Film, 3.6MOhm, 0.125W 1/8W, ±5%, -55°C~155°C

Case Package:SOT-23

Datasheet:RMCF0805JT3M60 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Plating	Tin
Mount	Surface Mount
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Published	2010
Series	RMCF
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Automotive AEC-Q200
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	±200ppm/°C
Resistance	3.6MOhm
Composition	Thick Film
Power (Watts)	0.125W 1/8W
Power Rating	125mW
Packing Method	TR, Paper, 7 Inch
Max Power Dissipation	125mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	2012
Case Code (Imperial)	0805
Working Voltage	150V
Height	660.4μm
Height Seated (Max)	0.026 0.65mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

RMCF0805JT3M60 Product Details

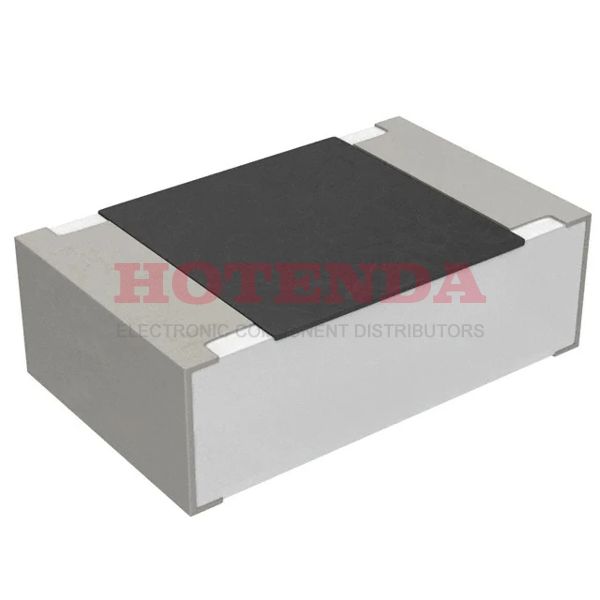

Description: The Stackpole Electronics RMCF0805JT3M60 is a surface mount chip resistor with a resistance of 3.6M Ohms and a tolerance of 5%. It has a power rating of 1/8W and a size of 0805.

Features:
- Resistance of 3.6M Ohms
- Tolerance of 5%
- Power rating of 1/8W
- Size of 0805
- Surface mount

Applications: The Stackpole Electronics RMCF0805JT3M60 chip resistor is suitable for a wide range of applications, including power supplies, audio equipment, and automotive electronics. It is also suitable for use in high-frequency circuits, as well as in circuits that require high-precision resistors.
