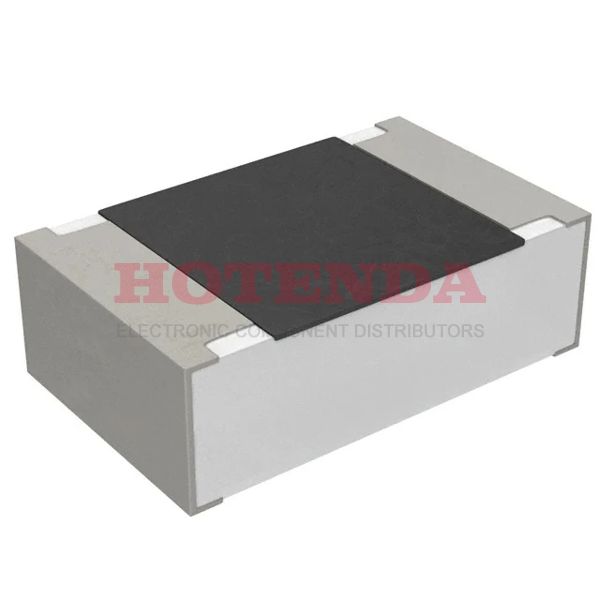

Name: RMCF0805JT20M0
Brand: Stackpole Electronics Inc
SKU: RMCF0805JT20M0
Availability: InStock

new-10%

RMCF0805JT20M0

Manufacturer part number:RMCF0805JT20M0

Manufacturer:Stackpole Electronics Inc

Description:RES SMD 20M OHM 5% 1/8W 0805

Case Package:SOT-23

Datasheet:RMCF0805JT20M0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Plating	Tin
Mount	Surface Mount
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Published	2012
Series	RMCF
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Automotive AEC-Q200
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	±200ppm/°C
Resistance	20MOhm
Composition	Thick Film
Power (Watts)	0.125W 1/8W
Power Rating	125mW
Packing Method	TR, Paper, 7 Inch
Max Power Dissipation	125mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	2012
Case Code (Imperial)	0805
Working Voltage	150V
Height	660.4μm
Height Seated (Max)	0.026 0.65mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

RMCF0805JT20M0 Product Details

Description:

The Stackpole Electronics RMCF0805JT20M0 is a surface mount chip resistor with a resistance value of 20M ohms and a tolerance of 5%. It has a power rating of 1/8W and is packaged in a 0805 size.

Features:

• Surface mount chip resistor
• Resistance value of 20M ohms
• Tolerance of 5%
• Power rating of 1/8W
• Packaged in a 0805 size

Applications:

The Stackpole Electronics RMCF0805JT20M0 is suitable for use in a variety of applications, including power supplies, audio amplifiers, and motor control circuits. It is also suitable for use in automotive, industrial, and consumer electronics.
