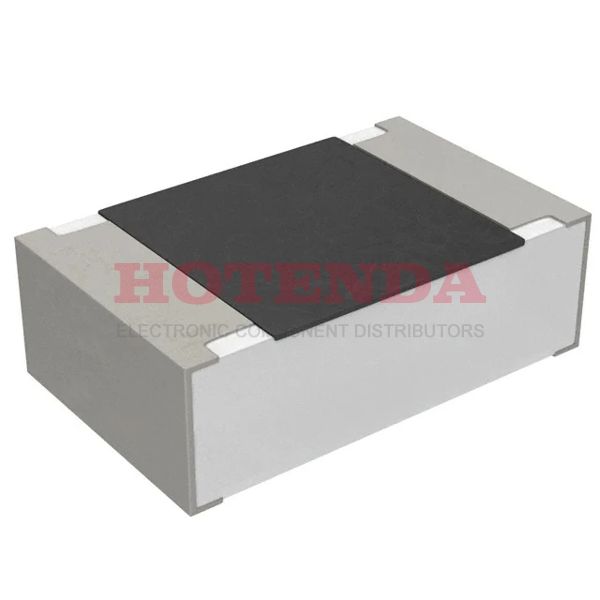

Name: RMCF0805FT20M0
Brand: Stackpole Electronics Inc
SKU: RMCF0805FT20M0
Availability: InStock

new-10%

RMCF0805FT20M0

Manufacturer part number:RMCF0805FT20M0

Manufacturer:Stackpole Electronics Inc

Description:FIXED RESISTOR RMCF Series, Thick Film, 20MOhm, 0.125W 1/8W, ±1%, -55°C~155°C

Case Package:SOT-23

Datasheet:RMCF0805FT20M0 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Package / Case	0805 (2012 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	RMCF
Published	2010
Size / Dimension	0.079Lx0.049W 2.00mmx1.25mm
Tolerance	±1%
JESD-609 Code	e3
Feature	Automotive AEC-Q200
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	±200ppm/°C
Resistance	20MOhm
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Composition	Thick Film
Power (Watts)	0.125W 1/8W
Subcategory	Fixed Resistors
Power Rating	125mW
Packing Method	TR, PAPER, 7 INCH
Max Power Dissipation	125mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Working Voltage	150V
Height	660.4μm
Height Seated (Max)	0.026 0.65mm
RoHS Status	ROHS3 Compliant
Ratings	AEC-Q200

RMCF0805FT20M0 Product Details

The Stackpole Electronics Chip Resistor - Surface Mount RMCF0805FT20M0 is a reliable and durable resistor designed for surface mount applications. This resistor has a resistance of 20M ohms and a tolerance of 1%. It is rated for 1/8 watt and is packaged in a 0805 size. This resistor is ideal for use in a variety of applications, including power supplies, audio amplifiers, and motor control circuits. It is designed to provide reliable performance in high-temperature environments and is RoHS compliant. The Stackpole Electronics Chip Resistor - Surface Mount RMCF0805FT20M0 is a reliable and cost-effective solution for your surface mount needs.
