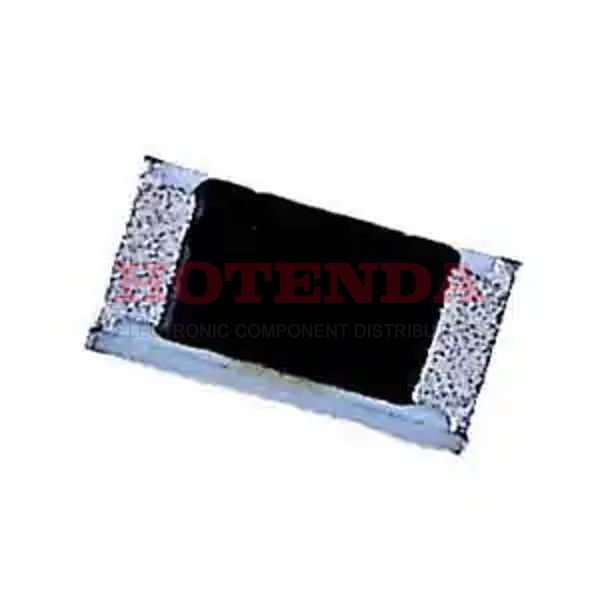

Name: RMCF0402JT510R
Brand: Stackpole Electronics Inc
SKU: RMCF0402JT510R
Price: 0.10000 USD
Availability: InStock

new-10%

RMCF0402JT510R

Manufacturer part number:RMCF0402JT510R

Manufacturer:Stackpole Electronics Inc

Description:FIXED RESISTOR RMCF Series, Thick Film, 510Ohm, 0.063W 1/16W, ±5%, -55°C~155°C

Case Package:SOT-23

Datasheet:RMCF0402JT510R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Plating	Tin
Mount	Surface Mount
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~155°C
Packaging	Tape & Reel (TR)
Series	RMCF
Published	2012
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±5%
JESD-609 Code	e3
Feature	Automotive AEC-Q200
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	±100ppm/°C
Resistance	510Ohm
Composition	Thick Film
Power (Watts)	0.063W 1/16W
Power Rating	63mW
Packing Method	TR, PAPER, 7 INCH
Max Power Dissipation	63mW
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	1005
Rated Power Dissipation (P)	0.063W
Case Code (Imperial)	0402
Working Voltage	50V
Height	406.4μm
Height Seated (Max)	0.016 0.40mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	AEC-Q200

RMCF0402JT510R Product Details

Description: Stackpole Electronics Chip Resistor - Surface Mount RMCF0402JT510R is a thick film resistor with a 0402 size and a 510 Ohm resistance value. It has a tolerance of 5% and a power rating of 1/16W. It has a temperature coefficient of 100ppm/C and is molded in a SMD package. It is supplied in a SMD paper tape and reel.

Features:
- 0402 size
- 510 Ohm resistance value
- 5% tolerance
- 1/16W power rating
- 100ppm/C temperature coefficient
- Molded in a SMD package
- Supplied in a SMD paper tape and reel

Applications: Stackpole Electronics Chip Resistor - Surface Mount RMCF0402JT510R is suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics. It can be used in circuits for power management, signal conditioning, and voltage regulation. It is also suitable for use in high-frequency circuits, such as RF amplifiers and filters.
