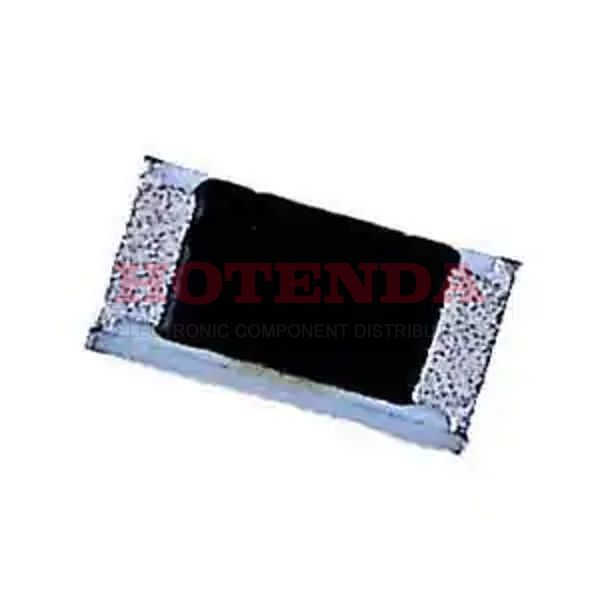

Res Thick Film 0402 47K Ohm 1% 0.063W(1/16W) ±100ppm/C Pad SMD Automotive T/R
SOT-23
RMCF0402FT47K0 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
20 Weeks
Contact Plating
Tin
Mount
Surface Mount
Package / Case
0402 (1005 Metric)
Terminal Shape
WRAPAROUND
Operating Temperature
-55°C~155°C
Packaging
Tape & Reel (TR)
Published
2010
Series
RMCF
Size / Dimension
0.039Lx0.020W 1.00mmx0.50mm
Tolerance
±1%
JESD-609 Code
e3
Feature
Automotive AEC-Q200
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Temperature Coefficient
±100ppm/°C
Resistance
47kOhm
Composition
Thick Film
Power (Watts)
0.063W 1/16W
Voltage - Rated
50V
Power Rating
63mW
Packing Method
TR, PAPER, 7 INCH
Max Power Dissipation
63mW
Depth
500μm
Construction
RECTANGULAR PACKAGE
Resistor Type
FIXED RESISTOR
Military Standard
Not
Case Code (Metric)
1005
Rated Power Dissipation (P)
0.063W
Case Code (Imperial)
0402
Height
400μm
Height Seated (Max)
0.016 0.40mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Ratings
AEC-Q200
In-Stock:72986 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.025884
$0.025884
500
$0.019032
$9.516
1000
$0.015860
$15.86
2000
$0.014551
$29.102
5000
$0.013599
$67.995
10000
$0.012650
$126.5
15000
$0.012234
$183.51
50000
$0.012030
$601.5
RMCF0402FT47K0 Product Details
Description:
Stackpole Electronics Chip Resistor - Surface Mount RMCF0402FT47K0 is a thick film resistor with a 0402 size and 47K Ohm resistance value. It has a tolerance of 1% and a power rating of 0.063W (1/16W). It also has a temperature coefficient of ±100ppm/C and is designed for surface mount applications. It is an automotive grade T/R.
Features:
- 0402 size - 47K Ohm resistance value - 1% tolerance - 0.063W (1/16W) power rating - ±100ppm/C temperature coefficient - Surface mount design - Automotive grade T/R
Applications:
Stackpole Electronics Chip Resistor - Surface Mount RMCF0402FT47K0 is designed for use in automotive applications. It can be used in a variety of applications such as power supplies, motor control, and audio/video equipment. It is also suitable for use in consumer electronics, medical devices, and industrial control systems.
