Name: HVCB2512MDD100K
Brand: Stackpole Electronics Inc
SKU: HVCB2512MDD100K
Price: 3.86000 USD
Availability: InStock

new-10%

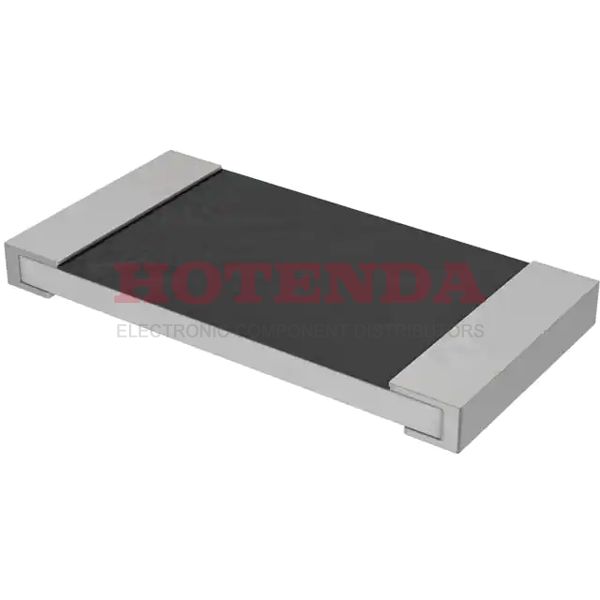

HVCB2512MDD100K

Manufacturer part number:HVCB2512MDD100K

Manufacturer:Stackpole Electronics Inc

Description:RES SMD 100K OHM 20% 2W 2512

Case Package:SOT-23

Datasheet:HVCB2512MDD100K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Package / Case	2512 (6432 Metric)
Surface Mount	YES
Terminal Shape	WRAPAROUND
Mounting Feature	SURFACE MOUNT
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Published	2012
Series	HVC
Size / Dimension	0.250Lx0.125W 6.35mmx3.18mm
Tolerance	±20%
JESD-609 Code	e3
Feature	High Voltage, Moisture Resistant, Pulse Withstanding
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	±100ppm/°C
Resistance	100kOhm
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Composition	Thick Film
Packing Method	TR, PLASTIC, 7 INCH
Max Power Dissipation	2W
Construction	Rectangular
Resistor Type	FIXED RESISTOR
Case Code (Metric)	6432
Rated Power Dissipation (P)	2W
Case Code (Imperial)	2512
Working Voltage	3000V
Height	762μm
Height Seated (Max)	0.030 0.76mm
RoHS Status	ROHS3 Compliant

About HVCB2512MDD100K

The HVCB2512MDD100K from Stackpole Electronics Inc is a high-performance microcontroller designed for a wide range of embedded applications. This component features RES SMD 100K OHM 20% 2W 2512.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the HVCB2512MDD100K, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
