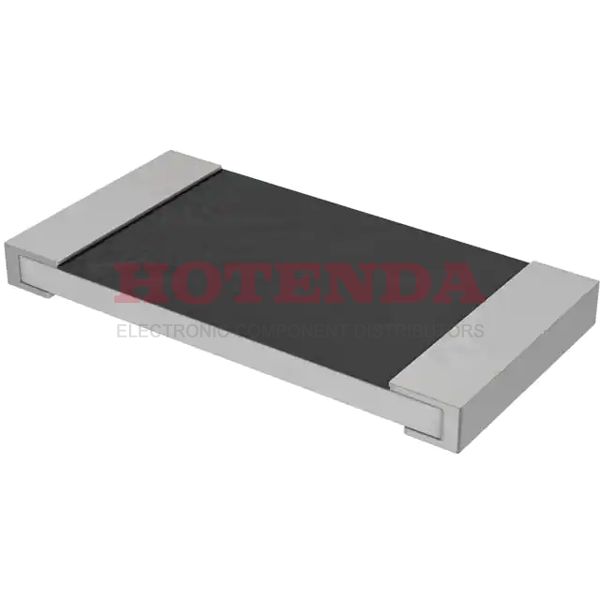

Res Thick Film 2512 20M Ohm 1% 2W ±50ppm/C Molded SMD T/R
SOT-23
HVCB2512FTC20M0 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
11 Weeks
Mount
Surface Mount
Package / Case
2512 (6432 Metric)
Terminal Shape
WRAPAROUND
Operating Temperature
-55°C~150°C
Packaging
Tape & Reel (TR)
Series
HVC
Size / Dimension
0.250Lx0.125W 6.35mmx3.18mm
Tolerance
±1%
JESD-609 Code
e3
Feature
High Voltage, Moisture Resistant, Pulse Withstanding
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Temperature Coefficient
±50ppm/°C
Resistance
20MOhm
Terminal Finish
Matte Tin (Sn) - with Nickel (Ni) barrier
Composition
Thick Film
Power Rating
2W
Packing Method
TR, PLASTIC, 7 INCH
Depth
3.18mm
Construction
Rectangular
Resistor Type
FIXED RESISTOR
Military Standard
Not
Rated Power Dissipation (P)
2W
Working Voltage
3000V
Height Seated (Max)
0.030 0.76mm
RoHS Status
ROHS3 Compliant
In-Stock:1918 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
HVCB2512FTC20M0 Product Details
Description:
The Stackpole Electronics HVCB2512FTC20M0 is a surface mount chip resistor with a 2512 size and a resistance of 20M Ohms. It has a tolerance of 1%, a power rating of 2W, and a temperature coefficient of ±50ppm/C. It is a thick film resistor with a molded SMD T/R package.
Features:
- 2512 size - Resistance of 20M Ohms - Tolerance of 1% - Power rating of 2W - Temperature coefficient of ±50ppm/C - Thick film resistor - Molded SMD T/R package
Applications:
The Stackpole Electronics HVCB2512FTC20M0 chip resistor is suitable for a variety of applications, including power supplies, motor control, and automotive electronics. It is also suitable for use in high-temperature environments.
