Name: SMS12RE4S6
Brand: SOURIAU-SUNBANK
SKU: SMS12RE4S6
Price: 12.52000 USD
Availability: InStock

new

SMS12RE4S6

Manufacturer part number:SMS12RE4S6

Manufacturer:SOURIAU-SUNBANK

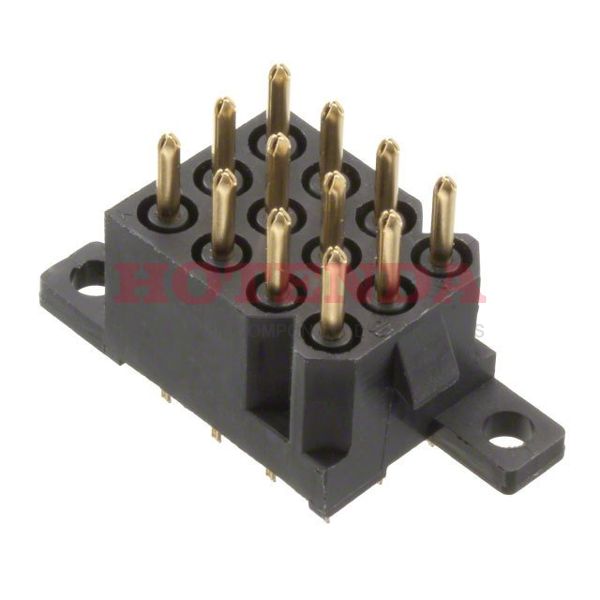

Description:SMS Series 4-Row Header Solder Copper Alloy Bulk Through Hole Gold Polyester, Glass Filled 12-Position Board to Cable/Wire 0.520 13.20mm Height

Case Package:SOT-23

Datasheet:SMS12RE4S6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	31 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polyester, Glass Filled
Housing Material	Polyamide
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	SMS
Feature	Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	12
Number of Rows	4
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Type	Male Pin
Orientation	Straight
Ingress Protection	IP40
Depth	16.2mm
Insulation Height	0.520 13.20mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.200 5.08mm
Insulation Color	Black
Row Spacing - Mating	0.200 (5.08mm)
Contact Length - Post	0.173 4.40mm
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.280 7.11mm
Contact Gender	Female
Overall Contact Length	0.972 24.70mm
Max Current Rating	5A
Wire/Cable Gauge	16 AWG
Length	35.1mm
Contact Finish Thickness - Mating	16.0μin 0.41μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

SMS12RE4S6 Product Details

SMS12RE4S6 Overview

Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the SMS Series, it belongs to the range of products of that series.A number of features make the Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
