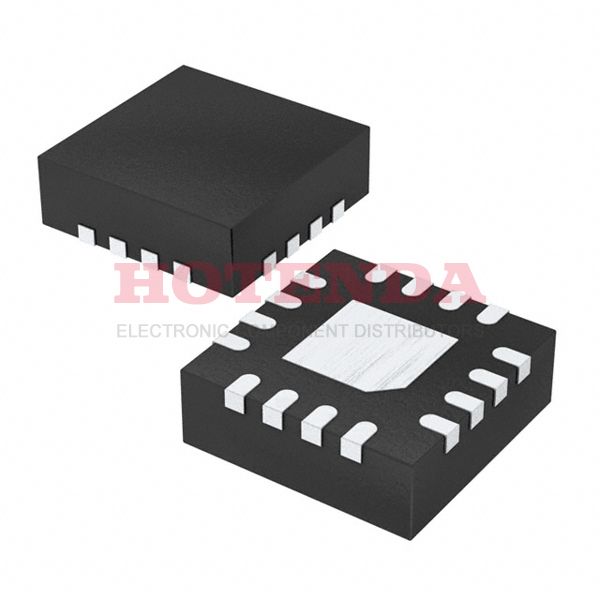

Name: TS3300ITQ1633
Brand: Silicon Labs
SKU: TS3300ITQ1633
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Number of Pins	16
Weight	57.09594mg
Operating Temperature	-40°C~85°C TA
Packaging	Strip
Published	2014
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	1.2V
Terminal Pitch	0.5mm
Function	Step-Up
Number of Outputs	1
Voltage - Input (Max)	3V
Output Voltage	3.6V
Output Type	Adjustable
Voltage - Input (Min)	0.6V
Supply Voltage-Max (Vsup)	3V
Number of Channels	2
Min Supply Voltage	600mV
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
Operating Supply Current	3.5μA
Output Configuration	Positive
Current - Output	365mA Switch
Adjustable Threshold	YES
Max Output Voltage	3.6V
Voltage - Output (Min/Fixed)	1.8V
Topology	Boost
Synchronous Rectifier	Yes
Min Output Voltage	1.8V
Height Seated (Max)	0.8mm
Length	3mm
Width	3mm
RoHS Status	RoHS Compliant

TS3300ITQ1633 Product Details

TS3300ITQ1633 Overview

As a result of the use of the Strip package, the performance of this voltage regulator is optimized. Throughout this voltage regulator, there are 16 terminations. A POWER SUPPLY SUPPORT CIRCUIT type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. In order to save space, this voltage regulator is packaged in the 16-WFQFN Exposed Pad package. A total of 1 outputs are configured in this voltage regulator. The adjusting voltage regulator generates Adjustable output. Surface Mount-mount switching regulator. Operating at -40°C~85°C TA is the recommended temperature for adjusting voltage regulator's operation. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 0.6V. DC DC switching regulator's output voltage (Min/Fixed) amounts to 1.8V. As a result of the 365mA Switch output current, voltage regulator offers maximum flexibility in design. Voltage regulators' input voltage is limited to 3V. The adjusting voltage regulator's output voltage is maintain at 3.6V. In order to operate voltage regulator, 16 pins are required. For this switching regulator, we recommend keeping the output voltage at at least 1.8V volts. It provides the adjusting voltage regulator's maximal output voltage of 3.6V. A dc to dc voltage regulator's dc to dc voltage regulator's minimum supply voltage of 600mV V ensures reliable performance. Powered by a 3.5μA supply current, this DC-DC switching regulator operates on a DC-DC voltage. In order to run this switching regulator at a 1.2V V supply, you will need a 1.2V V supply. It has 2 channels of voltage regulator.
