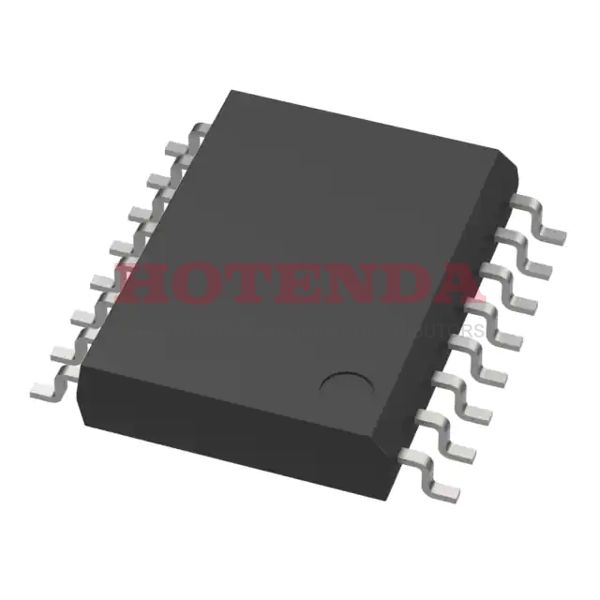

SI8631AB-B-ISR

new-10%

Manufacturer part number:SI8631AB-B-ISR

Manufacturer:Silicon Labs

Description:General Purpose tal Isolator 2500Vrms 3 Channel 1Mbps 35kV/µs CMTI 16-SOIC (0.295 , 7.50mm Width)

Case Package:SOT-23

Datasheet:SI8631AB-B-ISR Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Surface Mount	YES
Number of Pins	16
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
Published	2000
Part Status	Active
Moisture Sensitivity Level (MSL)	2A (4 Weeks)
Number of Terminations	16
Type	General Purpose
Subcategory	Other Analog ICs
Max Power Dissipation	415mW
Technology	Capacitive Coupling
Voltage - Supply	2.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Terminal Pitch	1.27mm
Voltage - Isolation	2500Vrms
Power Supplies	2.5/5V
Number of Channels	3
Operating Supply Current	2.7mA
Propagation Delay	35 ns
Turn On Delay Time	35 ns
Data Rate	1Mbps
Rise / Fall Time (Typ)	2.5ns 2.5ns
Screening Level	AEC-Q100
Channel Type	Unidirectional
Propagation Delay tpLH / tpHL (Max)	35ns, 35ns
Common Mode Transient Immunity (Min)	35kV/μs
Inputs - Side 1/Side 2	2/1
Isolated Power	No
Pulse Width Distortion (PWD)	25 ns
RoHS Status	RoHS Compliant
