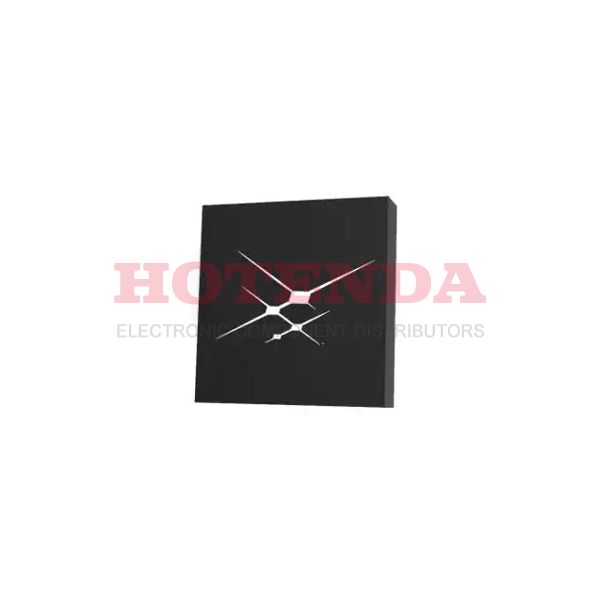

SI5345A-B05380-GM Overview
As a clock IC, PLLs is packaged using the Tray method. This clock generator will sustain a maximum temperature of 260 when reflown. 64 terminations can be found in frequency synthesizer. For this clock generator ic, a voltage of 1.8V is required. The maximal supply voltage this clock generator would take is 1.89V. The digital clock generator incorporates CLOCK GENERATOR, PROCESSOR SPECIFIC uPs, uCs, and peripheral ICs. The supply voltage (Vsup) should be kept above 1.71V for normal operation. A frequency generator that runs over 85°C may cause ha85°Cards. The clock PLL can synthesi712.5MHze a clock frequency of 712.5MHz with high quality. If the ambient temperature is below -40°C, the frequency generator may not start.
SI5345A-B05380-GM Features
Supply voltage of 1.8V
Output clock frequency (Max) of 712.5MHz
SI5345A-B05380-GM Applications
There are a lot of Silicon Labs SI5345A-B05380-GM Clock Generators applications.
- Microwave backhaul IF
- Coherent detection of the signal
- High-speed communication applications
- Mechanical devices
- Digital logic circuits
- Vector network analyzers (VNA)
- Ports
- FM demodulation networks for FM operations
- Carrier synchronization in wired communication
- Antenna automatic tracking
