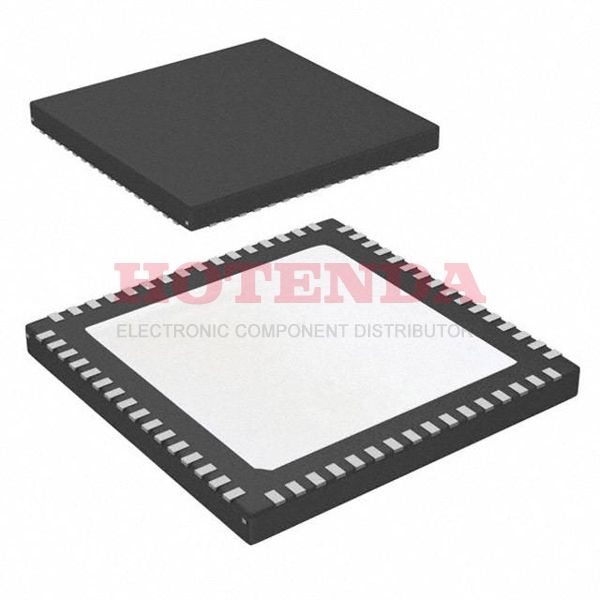

SI5341B-B05071-GM Overview
It is packaged using the Tray method since it is a clock IC. There is a clock generator embedded in the 64-VFQFN Exposed Pad package. The peak reflow temperature (Cel) amounts to 260 to be essentially indestructible. In it, there are 64 terminations to be found. Basically, a voltage of 1.8V should be applied to this electronic frequency generator. LVCMOS, LVDS, LVPECL, Crystal is designed as this clock generator's input. For a full understanding of the electronic part's performance, 1 circuits are implemented. Providing a maximum frequency of 350MHz, this clock-based RF synthesizer is suitable for a variety of applications. The Surface Mount allows this electrical component to be easily installed on the panel. There should be 1.71V~3.47V provided with this RF synthesizer. As determined by the test statistics, the ambient temperature should be set to -40°C~85°C. The frequency synthesizer in this product is compatible with all levels of CML, HCSL, LVCMOS, LVDS, LVPECL logic. This electronic component can be classified as a Clock Generator.
SI5341B-B05071-GM Features
Available in the 64-VFQFN Exposed Pad
Supply voltage of 1.8V
SI5341B-B05071-GM Applications
There are a lot of Silicon Labs SI5341B-B05071-GM Clock Generators applications.
- Carrier synchronization in wired communication
- Skew suppression
- Test and instrumentation equipment
- PCI express cards
- Microwave point-to-point systems
- CB radios
- Signal generator
- Sampling clocks for ADC and DAC
- Camera systems
- Integrated phase noise in aerospace systems
