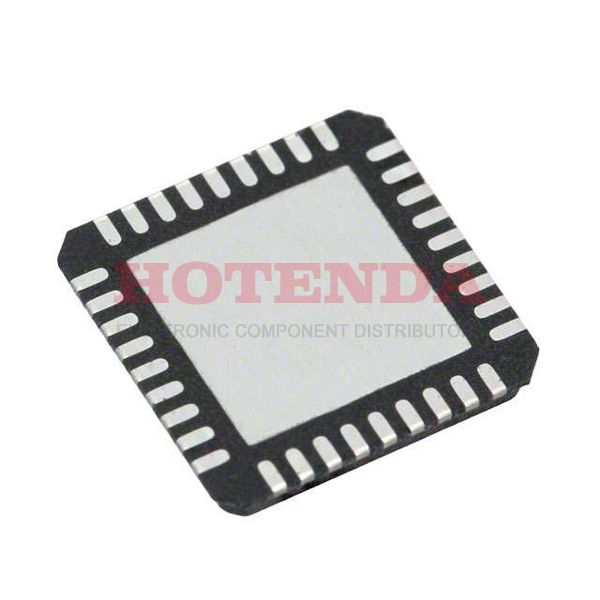

SI5326C-B-GM Overview
This clock IC is packaged using the Tube method. There is a clock generator embedded in the 36-VFQFN Exposed Pad package. The frequency generator is capable of withstanding a maximum temperature of 260 during reflowing. There are a total of 36 terminations in this file. This clock generator receives its inputs from LVCMOS, LVDS, LVPECL, Crystal, which is designed to be the clock source. To access the electronic component's full performance, 1 circuits are implemented. This clock-based frequency generator provides a frequency up to 346MHz Max. The Surface Mount allows the electrical component to be installed conveniently on the panel. As long as there are 1.62V~3.63V supply voltages provided, clock generator ic should work. Test statistics suggest setting the ambient temperature at -40°C~85°C, which is -40°C~85°C. The frequency synthesizer in this product is compatible with all levels of CML, LVCMOS, LVDS, LVPECL logic. An electrical part such as this one can be classified as a Clock Multiplier, Jitter Attenuator component. The clock-generating IC is a 36-bit device designed specifically for microprocessors. According to the base part number SI5326, its related parts can be found. The maximum supply voltage that clock generator can handle is 3.3V. DSPLL? series electronic parts are used in this part. 2 signal outputs maximi2e the output frequency.
SI5326C-B-GM Features
Available in the 36-VFQFN Exposed Pad
Operating supply voltage of 3.3V
SI5326C-B-GM Applications
There are a lot of Silicon Labs SI5326C-B-GM Clock Generators applications.
- Digital logic circuits
- Radiotelephones
- Electronic equipment
- Broadcast communication
- Automatic test equipment
- CB radios
- FPGA and processor clocks
- Main oscillator in receiver
- Wireless handsets
- Small signal recovery
