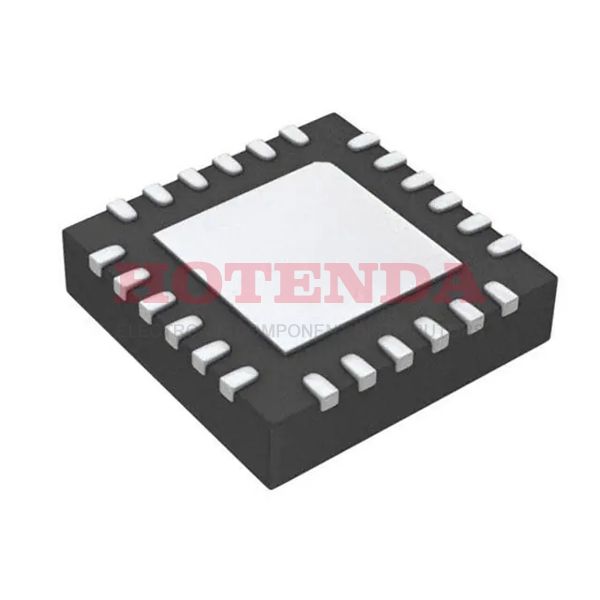

SI52144-A01AGMR Overview
Clock program is accessible in the Tape & Reel (TR) package. 24-WFQFN Exposed Pad is included in the case. Mounting type Surface Mount is recommended. In it, there are 24 terminations. There is 3.3V voltage provided by the part. A device with 1 has been detected. In normaloperation, the maximum frequency is 100MHz. -40°C~85°C operates within a range of temperatures. Components can supply voltages of 3.135V~3.465V. This component primarily serves the purpose of PCI Express (PCIe). As the output, HCSL should be used. There are 1997 publised of the part. The base part number SI52144 is the place where you can start your search for information. There are 24 pins on this device. A total of 24 pins are included. Circuits application is recommended to keep the supply voltage at 3.3V volts. In the family Clock Drivers, the device belongs. Circuits application is capable of maintaining 4 outputs on the device. Logic ICs of type PLL BASED CLOCK DRIVER are used. Supply current is available at 50mA.
SI52144-A01AGMR Features
Mounting Type: Surface Mount
Include 1 Circuits
run the output at th range of HCSL
with 24 Pins
operate supply voltage at the range of 3.3V
Logic IC Type: PLL BASED CLOCK DRIVER
SI52144-A01AGMR Applications
There are a lot of Silicon Labs SI52144-A01AGMR application specific timer?applications.
- Small Cells, Mobile Backhaul/Fronthaul
- Servers
- Test and Measurement
- 1 GbE and 10 GbE
- Processor and FPGA clocking
- Ethernet switch/router
- Communications
- Storage area networks
- eCPRI RRH (Remote Radio Head)
- OTN Muxponders and Transponders
