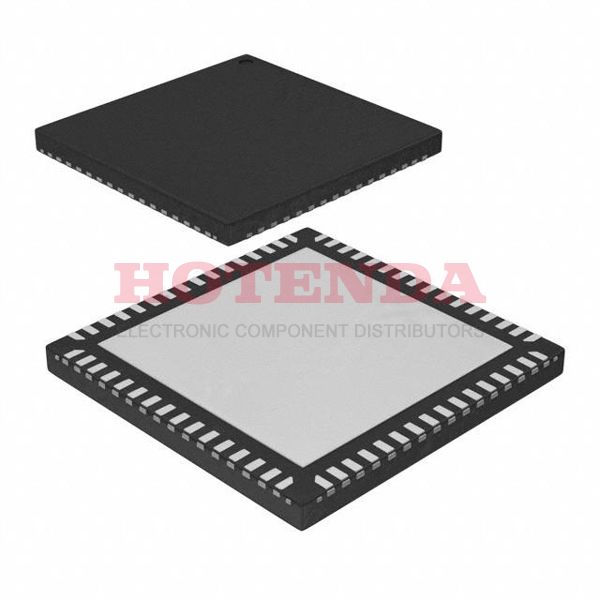

Name: EFM32WG840F64-QFN64T
Brand: Silicon Labs
SKU: EFM32WG840F64-QFN64T
Availability: InStock

new-10%

EFM32WG840F64-QFN64T

Manufacturer part number:EFM32WG840F64-QFN64T

Manufacturer:Silicon Labs

Description:64KB 64K x 8 FLASH ARM® Cortex®-M4F 32-Bit Microcontroller Wonder Gecko Series 64 Pin 48MHz 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:EFM32WG840F64-QFN64T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Weight	206.29948mg
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	Wonder Gecko
Published	2013
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	QUAD
Terminal Form	NO LEAD
Frequency	48MHz
Qualification Status	Not Qualified
Interface	I2C, I2S, IrDA, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	56
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	1.98V~3.8V
Core Processor	ARM® Cortex®-M4F
Peripherals	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, IrDA, SmartCard, SPI, UART/USART
Bit Size	32
Data Converter	A/D 8x12b; D/A 2x12b
Watchdog Timer	Yes
Data Bus Width	32b
Number of Timers/Counters	5
Core Architecture	ARM
CPU Family	CORTEX-M4F
Number of ADC Channels	8
RoHS Status	RoHS Compliant

EFM32WG840F64-QFN64T Product Details

EFM32WG840F64-QFN64T Overview

There is a 64-VFQFN Exposed Pad package available. The board has 56 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. Wonder Gecko-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 64KB 64K x 8. Powered by a ARM® Cortex®-M4F Core processor. IC Chip terminations are 64. As a result, this Microcontroller comes with a 32-bit size. This IC part has a memory size of 64kB. Performing well when operated at frequency 48MHz can be achieved. On the chip, there are 64 pins that can be accessed. It comes with 5 timers/counters that can be set up. The device is powered by the the CORTEX-M4F CPU family that is embedded in it. The CPU is based on ARM cores. The device has a total of 8 ADC channels in total.
