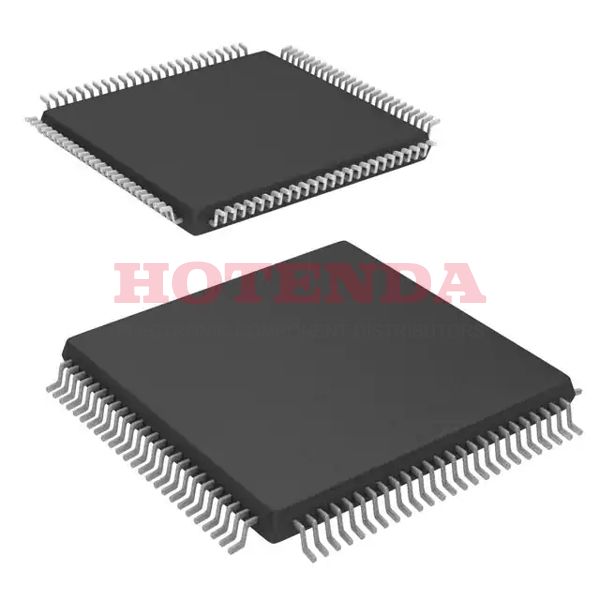

Name: C8051F060R
Brand: Silicon Labs
SKU: C8051F060R
Availability: InStock

new-10%

C8051F060R

Manufacturer part number:C8051F060R

Manufacturer:Silicon Labs

Description:64KB 64K x 8 FLASH 8051 8-Bit Microcontroller C8051F06x Series C8051F06 100 Pin 25MHz 3V 100-TQFP

Case Package:SOT-23

Datasheet:C8051F060R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Number of Pins	100
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	C8051F06x
Published	2000
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	3V
Terminal Pitch	0.5mm
Frequency	25MHz
Base Part Number	C8051F06
Pin Count	100
Qualification Status	Not Qualified
Supply Voltage-Min (Vsup)	2.7V
Number of Channels	6
Interface	2-Wire, CAN, EBI/EMI, I2C, SMBus, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	59
RAM Size	4.25K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 64K x 8
Connectivity	CANbus, EBI/EMI, SMBus (2-Wire/I2C), SPI, UART/USART
Bit Size	8
Data Converter	A/D 2x16b, 8x10b; D/A 2x12b
Access Time	25 μs
Has ADC	YES
DMA Channels	YES
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Address Bus Width	16
Length	14mm
Height Seated (Max)	1.2mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

C8051F060R Product Details

C8051F060R Overview

There is a 100-TQFP package available. The board has 59 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. C8051F06x-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 64KB 64K x 8. Powered by a 8051 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 100. As a result, this Microcontroller comes with a 8-bit size. Input voltage for the chip is 3V volts. A total of YES DMA channels are available. This IC part has a memory size of 64kB. There are a number of alternatives to the base part number C8051F06 that you can find. Performing well when operated at frequency 25MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 100 pins that can be accessed. The pins counted are 100.
