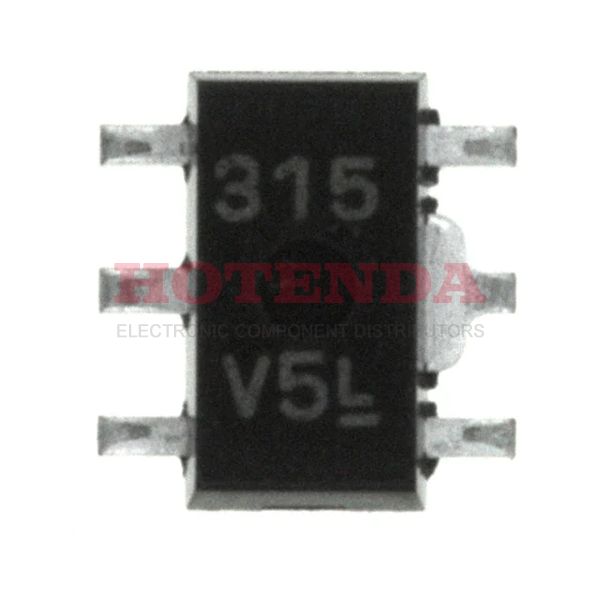

Name: PQ1N253MCSPQ
Brand: Sharp Microelectronics
SKU: PQ1N253MCSPQ
Availability: InStock

new-10%

PQ1N253MCSPQ

Manufacturer part number:PQ1N253MCSPQ

Manufacturer:Sharp Microelectronics

Description:Reset Fixed PMIC TO-243AA

Case Package:SOT-23

Datasheet:PQ1N253MCSPQ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-243AA
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2006
JESD-609 Code	e6
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Terminal Finish	TIN BISMUTH
Max Power Dissipation	900mW
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-F5
Qualification Status	Not Qualified
Voltage - Input (Max)	9V
Output Voltage	2.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	350mA
Control Features	Reset
Output Voltage 1	2.5V
Input Voltage (Min)	5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	2mA
Voltage Dropout (Max)	0.7V @ 350mA
PSRR	55dB (400Hz)
Dropout Voltage	450mV
Input Bias Current	1mA
Length	4.5mm
Width	2.5mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

PQ1N253MCSPQ Product Details

PQ1N253MCSPQ Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-243AA package. There are 5 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -30°C~85°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 350mA. Its dropout voltage is 10 volts.
