PQ1L503M2SP Overview

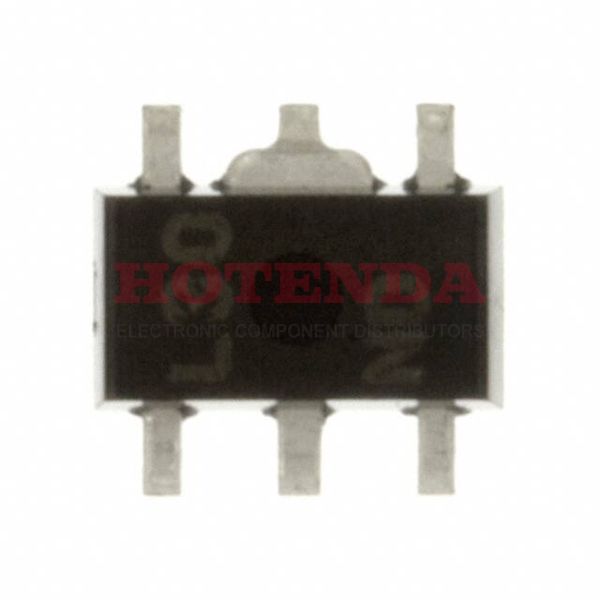

The package is delivered in a Cut Tape (CT) case. In order to package the IC voltage regulator, a SOT-89-5/6 case is used. On the Voltage regulator IC, there are 6 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -30°C~80°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 300mA. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 6 pins may be available. It operates in the 500μA Quiescent Current state.
PQ1L503M2SP Features
300mV dropout voltage
PQ1L503M2SP Applications
There are a lot of Sharp Microelectronics
PQ1L503M2SP Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
