PQ12DZ1UJ00H Overview

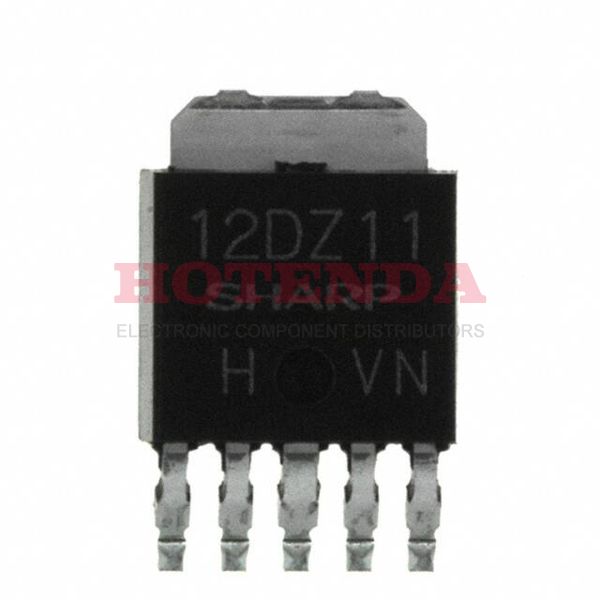

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-252-6, DPak (5 Leads + Tab) case is used for packaging. As you can see, the IC chip has 5 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -20°C~80°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. The dropout voltage of the regulator IC is 10 volts. 63 pins are on the chip. To meet operation requirements, the voltage regulator IC has a maximum output current of 1A. It operates in the 10mA Quiescent Current state.
PQ12DZ1UJ00H Features
200mV dropout voltage
PQ12DZ1UJ00H Applications
There are a lot of Sharp Microelectronics
PQ12DZ1UJ00H Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
