Name: PQ070XH02ZPH
Brand: Sharp Microelectronics
SKU: PQ070XH02ZPH
Availability: InStock

new-10%

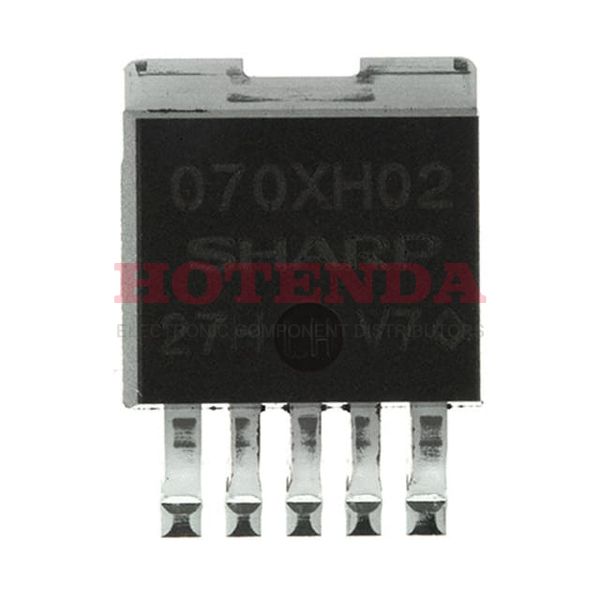

PQ070XH02ZPH

Manufacturer part number:PQ070XH02ZPH

Manufacturer:Sharp Microelectronics

Description:Enable Adjustable PMIC TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:PQ070XH02ZPH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2001
JESD-609 Code	e2
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Terminal Finish	TIN COPPER
Max Power Dissipation	35W
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	10
JESD-30 Code	R-PSSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	10V
Output Voltage	7V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	2A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.5V
Number of Regulators	1
Min Input Voltage	2.35V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	2mA
Voltage Dropout (Max)	0.5V @ 2A
PSRR	60dB (120Hz)
Reference Voltage	1.275V
Dropout Voltage	500mV
Input Bias Current	1mA
Height Seated (Max)	4mm
Width	8.4mm
RoHS Status	RoHS Compliant

PQ070XH02ZPH Product Details

PQ070XH02ZPH Overview
