Name: PQ05VY053ZPH
Brand: Sharp Microelectronics
SKU: PQ05VY053ZPH
Availability: InStock

new-10%

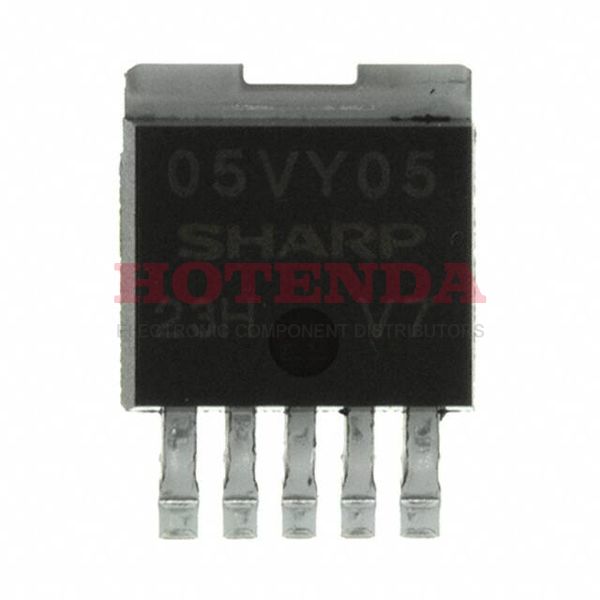

PQ05VY053ZPH

Manufacturer part number:PQ05VY053ZPH

Manufacturer:Sharp Microelectronics

Description:Enable Adjustable PMIC TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:PQ05VY053ZPH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Operating Temperature	-20°C~80°C
Packaging	Tape & Reel (TR)
Published	2001
JESD-609 Code	e2
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Terminal Finish	TIN COPPER
Max Power Dissipation	35W
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	10
JESD-30 Code	R-PSSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	7V
Output Voltage	5V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	5A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.5V
Number of Regulators	1
Min Input Voltage	2.35V
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	10mA
Voltage Dropout (Max)	0.5V @ 5A
PSRR	70dB (120Hz)
Reference Voltage	1.252V
Dropout Voltage	500mV
Input Bias Current	5mA
Height Seated (Max)	4.25mm
Width	8.4mm
RoHS Status	RoHS Compliant

PQ05VY053ZPH Product Details

PQ05VY053ZPH Overview

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case contains the Liner IC. In total, there are 5 terminations on the gadget. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -20°C~80°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. The current output of this IC regulator is 5A. There is a 10 volt dropout voltage on this transistor.
