PQ033DNA1ZPH Overview

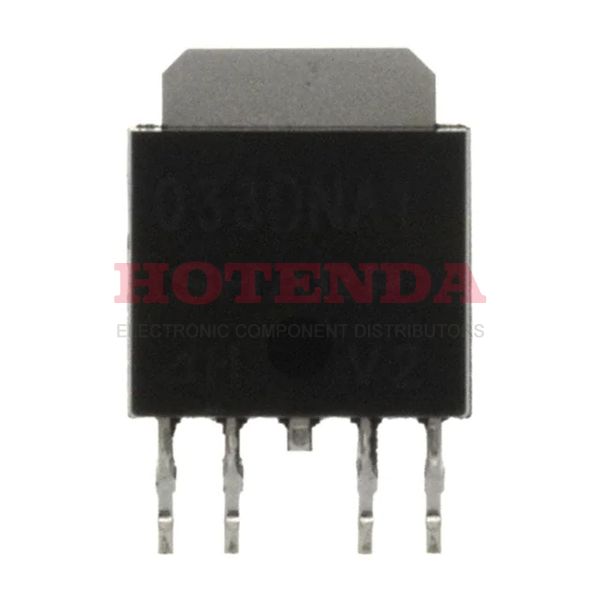

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A TO-252-5, DPak (4 Leads + Tab), TO-252AD case is used for packaging. As you can see, the IC chip has 4 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~85°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. As far as its current output is concerned, it stands at 1A. The dropout voltage of the regulator IC is 10 volts. 63 pins are on the chip.
PQ033DNA1ZPH Features
200mV dropout voltage
PQ033DNA1ZPH Applications
There are a lot of Sharp Microelectronics
PQ033DNA1ZPH Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
