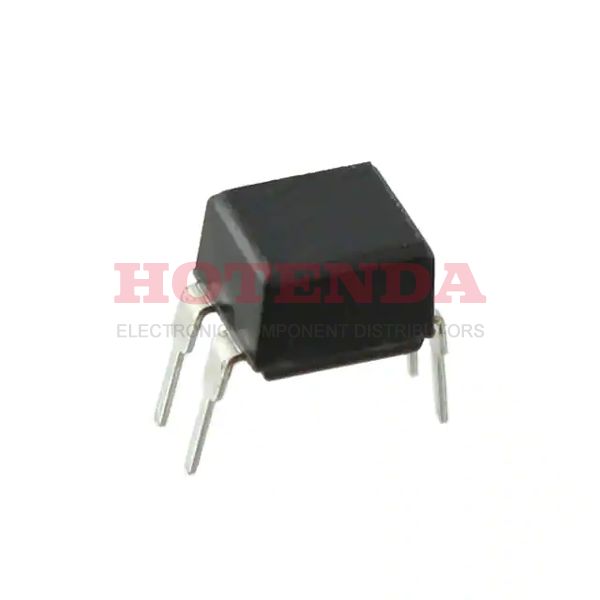

PC852XNNSZ0F datasheet pdf and Optoisolators - Transistor, Photovoltaic Output product details from Sharp Microelectronics stock available on our website
SOT-23
PC852XNNSZ0F Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
6 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
4-DIP (0.300, 7.62mm)
Number of Pins
4
Operating Temperature
-30°C~100°C
Packaging
Tube
Published
2005
Part Status
Discontinued
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Voltage - Isolation
5000Vrms
Output Type
Darlington
Number of Channels
1
Input Type
DC
Max Output Voltage
350V
Output Current per Channel
150mA
Collector Emitter Voltage (VCEO)
1.2V
Max Collector Current
150mA
Rise / Fall Time (Typ)
100μs 20μs
Max Input Current
50mA
Collector Emitter Saturation Voltage
1.2V
Current - DC Forward (If) (Max)
50mA
Current Transfer Ratio (Min)
1000% @ 1mA
RoHS Status
RoHS Compliant
In-Stock:1511 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.15000
$1.15
10
$0.93600
$9.36
25
$0.72000
$18
100
$0.64800
$64.8
250
$0.57600
$144
500
$0.48960
$244.8
PC852XNNSZ0F Product Details
PC852XNNSZ0F Description
The PC852XNNSZ0F is a 4 Dip Darl 5KV Darlington Optoisaltor.
PC852XNNSZ0F Features
Operating Temperature: -30℃~100℃
Darlington Output Type.
RoHS Compliant
PC852XNNSZ0F Applcations
Automotive
