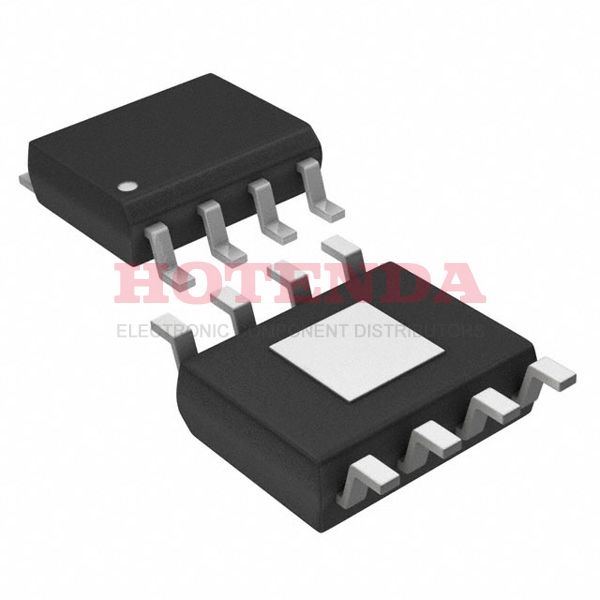

Name: SC4520SETRT
Brand: Semtech Corporation
SKU: SC4520SETRT
Availability: InStock

SC4520SETRT

Manufacturer part number:SC4520SETRT

Manufacturer:Semtech Corporation

Description:8 Terminals 4.4V 8-Pin DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 100kHz~600kHz Tape & Reel (TR) 3A 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:SC4520SETRT Datasheet PDF

RoHs Status:non-compliant

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Number of Pins	8
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Published	2013
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	Switching Regulator or Controllers
Terminal Position	DUAL
Terminal Form	GULL WING
Function	Step-Down
Number of Outputs	1
Output Type	Adjustable
Operating Supply Voltage	24V
Voltage - Input (Min)	4.4V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	3A
Max Output Voltage	20.4V
Voltage - Output (Min/Fixed)	0.8V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	100kHz~600kHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Min Output Voltage	800mV
Length	4.9mm
Width	3.9mm
RoHS Status	RoHS Compliant
Lead Free	Lead Free

SC4520SETRT Product Details

SC4520SETRT Overview

There is an optimized performance in this voltage regulator because it utilizes the Tape & Reel (TR) package. This harley voltage regulator has 8 terminations. This regulator voltage is equipped with a type of analog integrated circuit that is called a SWITCHING REGULATOR voltage regulator. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a 8-SOIC (0.154, 3.90mm Width) Exposed Pad package. In this case, DC DC switching regulator has 1 outputs configured to it. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. This switching regulator is designed to fit the Surface Mount mounting system. Operating at -40°C~125°C TA is the recommended temperature for adjusting voltage regulator's operation. A DC-DC switching regulator of this type operates at a switching frequency of 100kHz~600kHz. There is no dc to dc voltage regulator's minimum input voltage requirement for this regulator. The adjusting voltage regulator's output voltage (Min/Fixed) is 0.8V. As a result of the 3A output current, voltage regulator offers maximum flexibility in design. An input voltage of 12V is required for switching regulator operation. DC DC switching regulator is part of the Switching Regulator or Controllers subcategory and can be found in the Switching Regulator or Controllers category. For switching regulator operation, 8 pins are used. As a general rule, this voltage regulator 12v should keep its output voltage at least at 800mV. An output voltage of 20.4V is provided by this regulator voltage. A harley voltage regulator operates with a 24V supply voltage.
