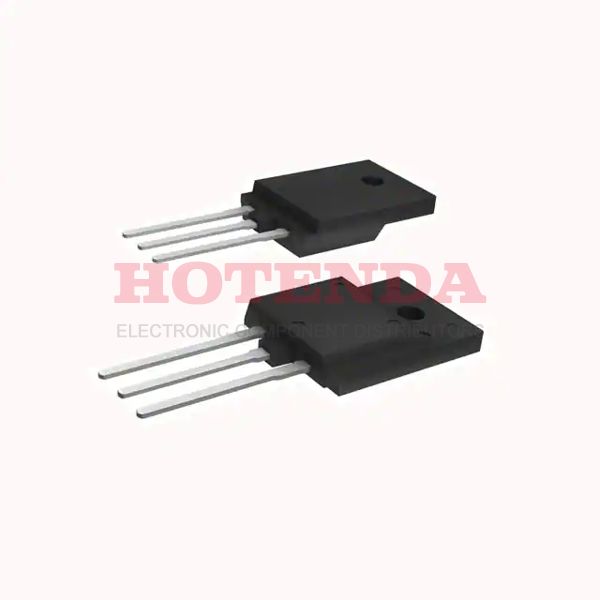

FMD-4206S

Name: FMD-4206S
Brand: Sanken
SKU: FMD-4206S
Price: 2.81000 USD
Availability: InStock

new-10%

Manufacturer part number:FMD-4206S

Manufacturer:Sanken

Description:FMD-4206S datasheet pdf and Diodes - Rectifiers - Arrays product details from Sanken stock available on our website

Case Package:SOT-23

Datasheet:FMD-4206S Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-3P-3 Full Pack
Diode Element Material	SILICON
Packaging	Bulk
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	2
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	100μA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.7V @ 10A
Case Connection	ISOLATED
Operating Temperature - Junction	-40°C~150°C
Application	ULTRA FAST RECOVERY
Voltage - DC Reverse (Vr) (Max)	600V
Max Reverse Voltage (DC)	600V
Average Rectified Current	20A
Number of Phases	1
Reverse Recovery Time	50 ns
JEDEC-95 Code	TO-220AC
Non-rep Pk Forward Current-Max	100A
RoHS Status	RoHS Compliant
Lead Free	Lead Free
