Name: ZW-01-09-L-S-545-090
Brand: Samtec Inc.
SKU: ZW-01-09-L-S-545-090
Price: 0.27000 USD
Availability: InStock

new-10%

ZW-01-09-L-S-545-090

Manufacturer part number:ZW-01-09-L-S-545-090

Manufacturer:Samtec Inc.

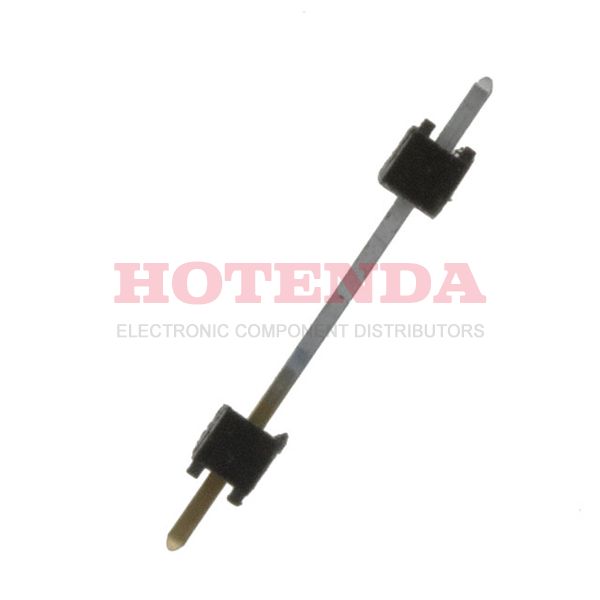

Description:Flex Stack, ZW Series GENERAL PURPOSE BOARD STACKING CONNECTOR 1 Rows Solder Bulk Through Hole 1 Positions Black

Case Package:SOT-23

Datasheet:ZW-01-09-L-S-545-090 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Bronze
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyester
Packaging	Bulk
Published	2015
Series	Flex Stack, ZW
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	BOARD STACKING CONNECTOR
Number of Positions	1
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	1
Orientation	Straight
Depth	2.54mm
Contact Finish - Post (Mating)	Gold
Length	18.542mm
Length - Stack Height	0.545 13.843mm
Length - Overall Pin	0.730 18.542mm
Length - Post (Mating)	0.096 2.438mm
Contact Finish Thickness - Post (Mating)	10.0μin 0.25μm
Length - Tail	0.090 2.286mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ZW-01-09-L-S-545-090 Product Details

ZW-01-09-L-S-545-090 Overview

The product comes in a package of BOARD STACKING CONNECTOR.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Flex Stack, ZW Series.Use it when the temperature is below 125°C.Temperatures below -55°C are required for this device to operate.
