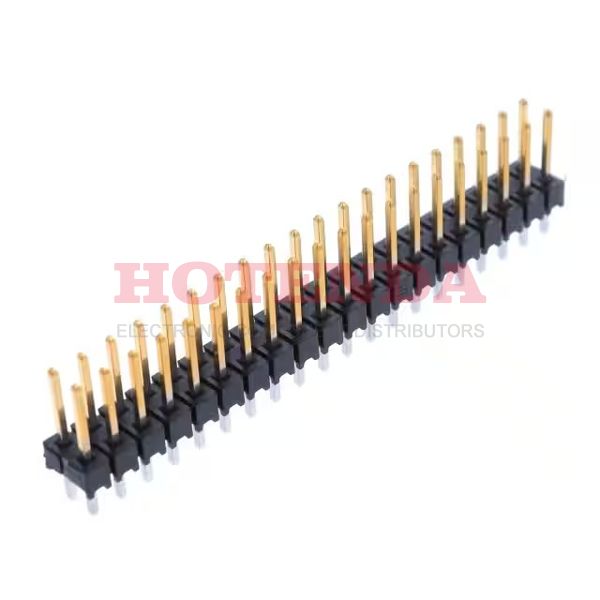

TSW-120-24-L-D

TSW-120-24-L-D

Samtec Inc.

TSW-120-24-L-D datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Samtec Inc. stock available on our website

SOT-23

TSW-120-24-L-D Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 2 Weeks
Contact MaterialBronze
Contact PlatingGold
Mounting Type BOARD
Housing Material Polyester
Mounting Style STRAIGHT
Published 2005
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type BOARD CONNECTOR
Max Operating Temperature125°C
Min Operating Temperature -55°C
Number of Rows 2
Gender Male
Additional FeatureE.L.P.
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.54mm
Orientation Vertical
Depth 5.08mm
Lead Pitch 2.54mm
Number of Contacts 40
Mating Information MULTIPLE MATING PARTS AVAILABLE
Housing Color Black
Max Voltage Rating (AC) 550V
Max Current Rating 7.6A
Length 50.8mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:1433 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.601000$4.601
10$4.340566$43.40566
100$4.094874$409.4874
500$3.863088$1931.544
1000$3.644423$3644.423

TSW-120-24-L-D Product Details

TSW-120-24-L-D Overview


The packaging contains BOARD CONNECTOR.This device's mounting type is BOARD.To name a few, there is also E.L.P..Use it below 125°C.Temperatures below -55°C are required for this device.
