Name: TSM-104-01-S-DV-A
Brand: Samtec Inc.
SKU: TSM-104-01-S-DV-A
Price: 2.97000 USD
Availability: InStock

new-10%

TSM-104-01-S-DV-A

Manufacturer part number:TSM-104-01-S-DV-A

Manufacturer:Samtec Inc.

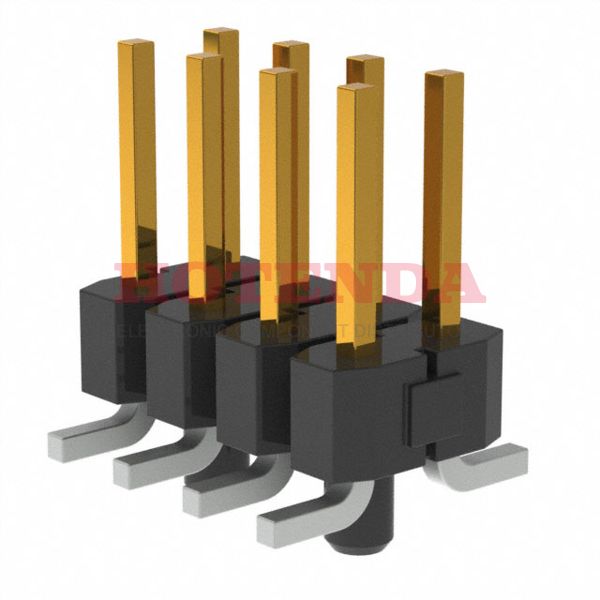

Description:TSM Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 8-Position Board to Board or Cable 0.100 2.54mm Height

Case Package:SOT-23

Datasheet:TSM-104-01-S-DV-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LOCKING
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	TSM
JESD-609 Code	e3
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	8
Number of Rows	2
Gender	Male
Additional Feature	E.L.P.
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	8
Orientation	Straight
Depth	5.08mm
Insulation Height	0.100 2.54mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.230 5.84mm
PCB Contact Pattern	RECTANGULAR
Mating Contact Pitch	0.1 inch
Max Voltage Rating (AC)	475V
Max Current Rating	7A
Length	10.16mm
Plating Thickness	30μin
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TSM-104-01-S-DV-A Product Details

TSM-104-01-S-DV-A Overview

It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Tube case is used.It belongs to the TSM Series of products.In addition, there are other features such as E.L.P., to mention only a few.Its Board Guide feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
