Name: TFM-115-01-F-D-WT
Brand: Samtec Inc.
SKU: TFM-115-01-F-D-WT
Price: 7.06000 USD
Availability: InStock

new-10%

TFM-115-01-F-D-WT

Manufacturer part number:TFM-115-01-F-D-WT

Manufacturer:Samtec Inc.

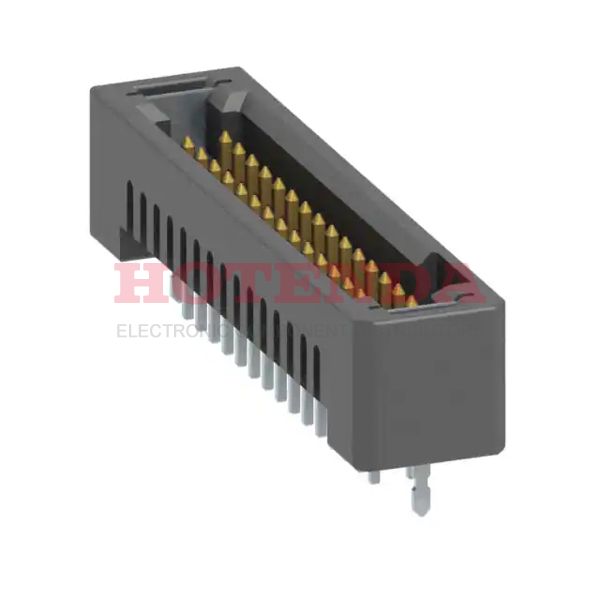

Description:Tiger Eye™ TFM Series 2-Row Header Solder Phosphor Bronze Tube Through Hole Gold Liquid Crystal Polymer (LCP) 30-Position Board to Board or Cable 0.220 5.60mm Height

Case Package:SOT-23

Datasheet:TFM-115-01-F-D-WT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	Tiger Eye™ TFM
JESD-609 Code	e3
Feature	Solder Retention
Part Status	Active
Termination	Solder
Connector Type	Header
Number of Positions	30
Number of Rows	2
Gender	Male
Voltage - Rated	275VAC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.9A per Contact
Insulation Height	0.220 5.60mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Body Length or Diameter	1.013 inch
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.078 1.98mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.131 3.33mm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Mating Contact Pitch	0.05 inch
Plating Thickness	FLASH inch
Contact Finish Thickness - Mating	3.00μin 0.076μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

TFM-115-01-F-D-WT Product Details

TFM-115-01-F-D-WT Overview

This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Tiger Eye™ TFM Series.In many ways, Solder Retention makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
