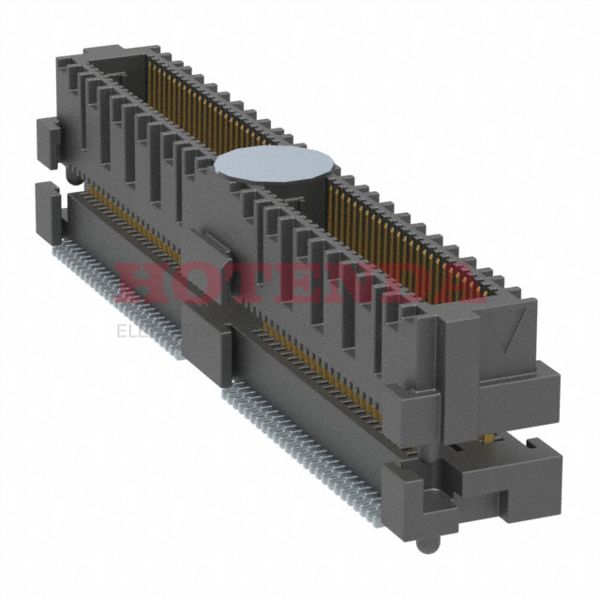

Name: QMS-052-09.75-SL-D-A-K-TR
Brand: Samtec Inc.
SKU: QMS-052-09.75-SL-D-A-K-TR
Price: 20.35000 USD
Availability: InStock

new

QMS-052-09.75-SL-D-A-K-TR

Manufacturer part number:QMS-052-09.75-SL-D-A-K-TR

Manufacturer:Samtec Inc.

Description:Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.025 0.64mm Surface Mount 104 Positions Power Q2™ QMS Gold Solder Bronze

Case Package:SOT-23

Datasheet:QMS-052-09.75-SL-D-A-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Bronze
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Series	Power Q2™ QMS
JESD-609 Code	e3
Feature	Board Guide, Ground Bus (Plane), Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header, Outer Shroud Contacts
Number of Positions	104
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.025 0.64mm
Total Number of Contacts	104
Orientation	Straight
Depth	7.26mm
Contact Finish	Gold
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Max Voltage Rating (AC)	300V
Length	42.17mm
Contact Finish Thickness	10.0μin 0.25μm
Height Above Board	0.368 9.35mm
Stack Height (Mating)	14mm 16mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

QMS-052-09.75-SL-D-A-K-TR Product Details

QMS-052-09.75-SL-D-A-K-TR Overview

The product is packaged in Header, Outer Shroud Contacts.It has been determined that a Tape & Reel (TR) case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the Power Q2™ QMS Series.This can be ensured when the system is in operation by maintaining Board Guide, Ground Bus (Plane), Pick and Place.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.
