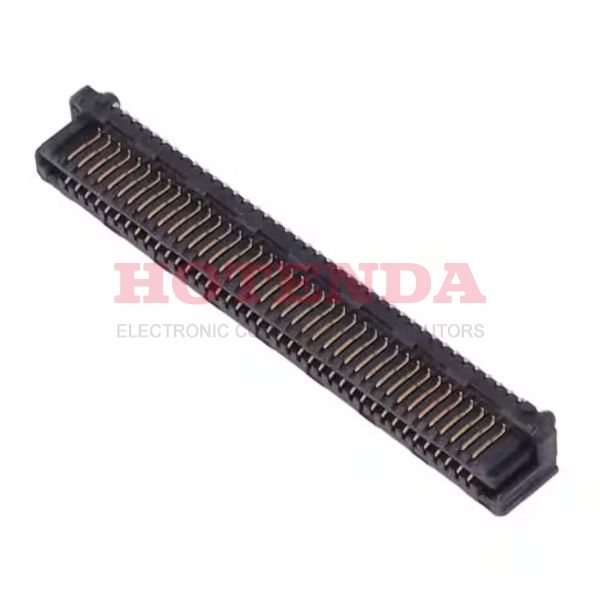

Name: LSEM-140-03.0-F-DV-A-N-TR
Brand: Samtec Inc.
SKU: LSEM-140-03.0-F-DV-A-N-TR
Price: 8.76000 USD
Availability: InStock

new

LSEM-140-03.0-F-DV-A-N-TR

Manufacturer part number:LSEM-140-03.0-F-DV-A-N-TR

Manufacturer:Samtec Inc.

Description:Self Mating, Non-Gendered Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 80 Positions Razor Beam™ LSEM Gold PHOSPHOR BRONZE

Case Package:SOT-23

Datasheet:LSEM-140-03.0-F-DV-A-N-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	PHOSPHOR BRONZE
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1	LOCKING
Board Mounting Option	PEG
Packaging	Tape & Reel (TR)
Series	Razor Beam™ LSEM
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Self Mating, Non-Gendered
Number of Positions	80
Number of Rows	2
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Pitch	0.031 0.80mm
Total Number of Contacts	80
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	1.433 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.196 inch
Contact Gender	FEMALE
Operating Temperature (Min)	-55°C
Rated Current (Signal)	1.8A
Contact Style	BELLOWED TYPE
Polarization Key	POLARIZED HOUSING
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Contact Finish Thickness	Flash
Height Above Board	0.175 4.45mm
Stack Height (Mating)	6mm 7mm 9mm
RoHS Status	ROHS3 Compliant

LSEM-140-03.0-F-DV-A-N-TR Product Details

LSEM-140-03.0-F-DV-A-N-TR Overview

It comes in Self Mating, Non-Gendered packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the Razor Beam™ LSEM Series of products.When operating, it is possible to ensure that Board Guide is maintained.
