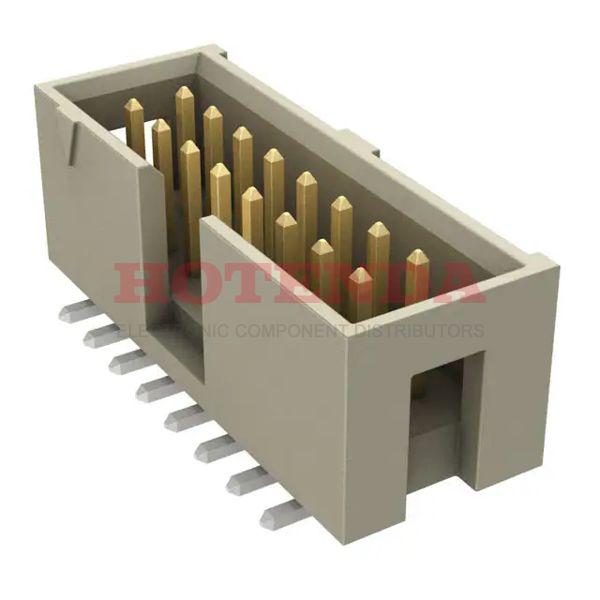

Name: HTST-108-01-S-DV-P
Brand: Samtec Inc.
SKU: HTST-108-01-S-DV-P
Price: 7.13000 USD
Availability: InStock

new

HTST-108-01-S-DV-P

Manufacturer part number:HTST-108-01-S-DV-P

Manufacturer:Samtec Inc.

Description:Flex Stack, HTST Series 2-Row Header Solder Phosphor Bronze Bulk Surface Mount Gold Liquid Crystal Polymer (LCP) 16-Position Board to Cable/Wire 0.350 8.89mm Height

Case Package:SOT-23

Datasheet:HTST-108-01-S-DV-P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polychlorinated
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	Flex Stack, HTST
JESD-609 Code	e4
Feature	Keying Slot, Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	16
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Total Number of Contacts	16
Orientation	Straight
Depth	9.27mm
Insulation Height	0.350 8.89mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Natural
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.250 6.35mm
UL Flammability Code	94V-0
Length	27.94mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

HTST-108-01-S-DV-P Product Details

HTST-108-01-S-DV-P Overview

This product is packaged in a Header box.Surface Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Flex Stack, HTST Series.In many ways, Keying Slot, Pick and Place makes it more powerful.Operating temperature is set to -55°C~125°C.
